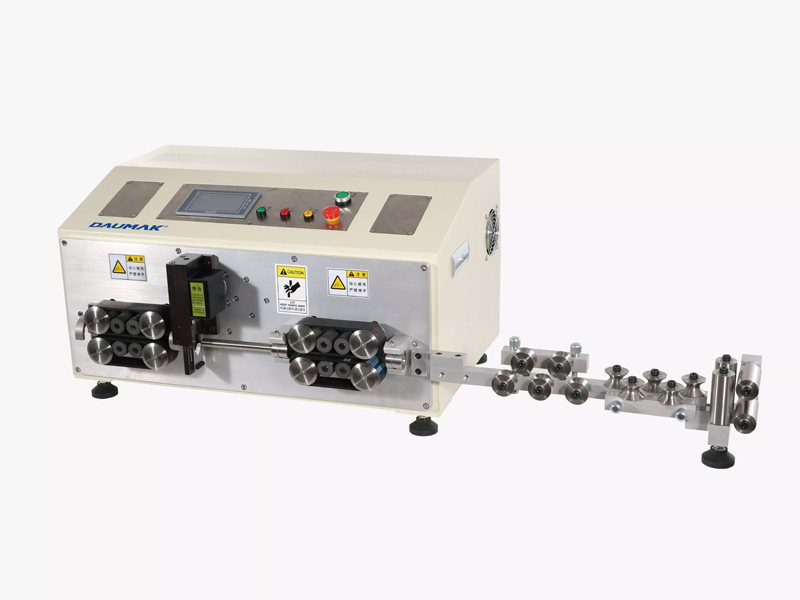

Characteristic description:

① The control system is equipped with a 32-bit Cortex-M3 core processor and a 7-inch industrial touch screen, which is easy to operate and has high stability;

② Using 4 belts for wire feeding, the contact area between the feeding belt and the wire is larger, ensuring stable feeding and accurate length;

③ The control system is highly integrated, greatly reducing the system's failure rate!

④ Equipped with a large capacity memory, it can simultaneously store 100 sets of parameters for easy operation;

⑤ The distance between the front and rear rollers is controlled by a motor, and only the wire diameter needs to be input, making it easy to operate;

⑥ The upper and lower rollers are synchronously adjusted, and the center point of the blade remains unchanged, so there is no need to adjust the blade for processing large or small lines;

⑦ All machines are driven by motors and do not require compressed air, making them highly versatile!

Technical Specifications:

·Model: DM-3070

·Display mode: 7-inch touch screen human-machine interface

·Cutting length: 0.1mm-100mm

·Data debugging accuracy: 0.01mm

·Individual cutting accuracy: ± 0.02 * L (L is the total length of the cutting line)

·Cutting range: 2-70 square mm

·Maximum diameter of the catheter: 20mm

·Tool material: High speed steel

·Cutting speed: 2000-3000PCS/H; Stripping speed: 800-1500PCS/H

·Drive mode: Eight wheel drive

·Power: 1000W 220V 50Hz

·Dimensions: 400 * 515 * 345
