Characteristic description:

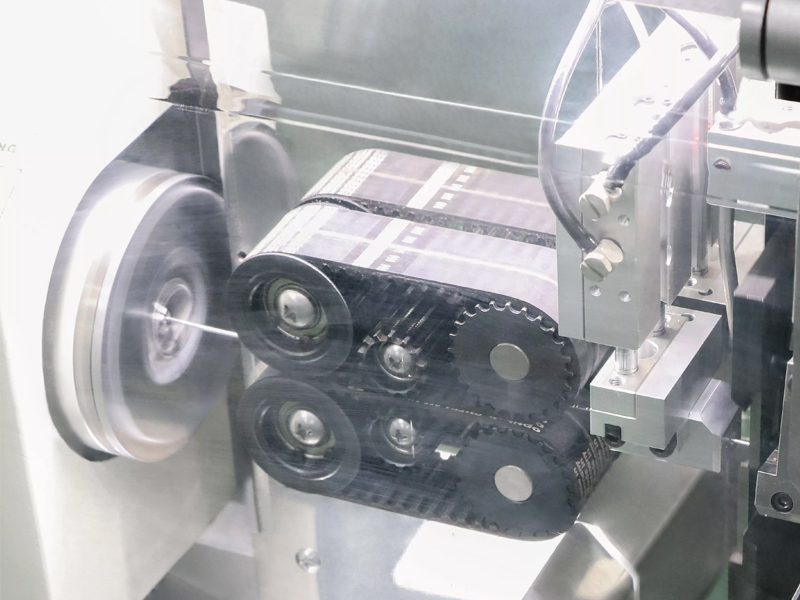

9600D is specifically designed for coaxial cable short lines in the antenna industry. Based on 9600, a set of mechanical manual workstations has been added to solve the problem of relying solely on manual short lines in the world, improving accuracy and processing capabilities. Up to 6 layers can be peeled without changing the blade to process various sizes and outer wires, and equipped with a freely combinable setting controller that displays the cutting wire diameter through digital display.

Technical Specifications:

·Model: DM-9600D

·Display mode: touch screen

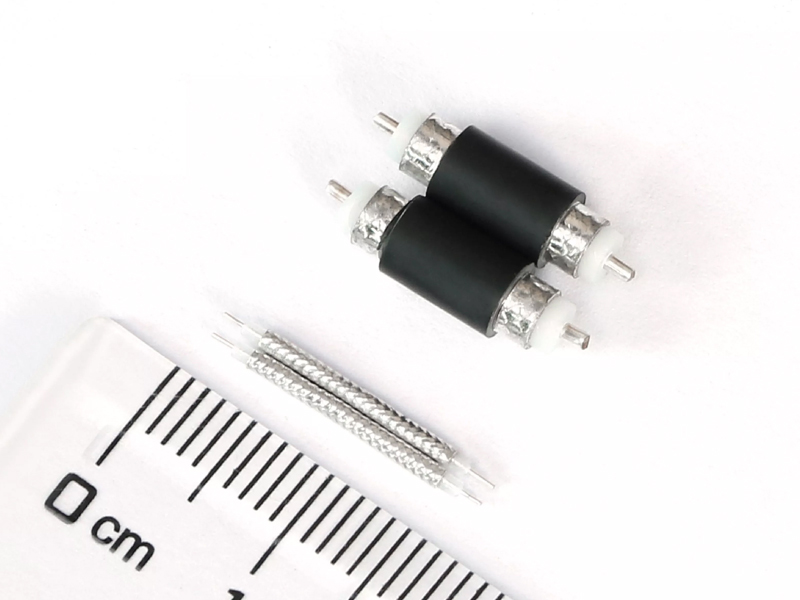

·Applicable wires: semi flexible and flexible coaxial cables

·Cutting line diameter range: 1.0-6.0

·Cutting length: 15-200mm (when 16mm, the three section stripping is less than 5mm)

·Peeling range: The maximum peeling length on the left end is 30mm, and the maximum peeling length on the right end is 50mm

·Cutting accuracy: Length accuracy ± 2 ‰

·Peeling accuracy: ± 0.2mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 6 layers

·Display interface: Chinese and English LCD 153mm * 85mm

·Working power supply: AC220V/110V 50/60HZ

·Dimensions: 790 * 730 * 400mm

·Power: 800W

·Weight: Approximately 110kg

·Drive mode: motor/ball screw drive

·Peeling method: rotating knife+cutting peeling knife

·Tool material: imported tungsten steel+imported high-speed steel

·Working environment: A dry and vibration free workbench at -5-45 degrees Celsius

·Storage capacity: 40 types of processing parameter data (limited to 40 types)

·Production efficiency: 400-700pcs/h (depending on the viewing material)
