Characteristic description:

Suitable for semi flexible and flexible coaxial lines inside base station antennas, with special requirements for single core wire processing; With a storage capacity of up to 100 sets, various processing data can be fully saved and accessed at any time.

Technical Specifications:

·Model: DM-9600S

·Display mode: touch screen

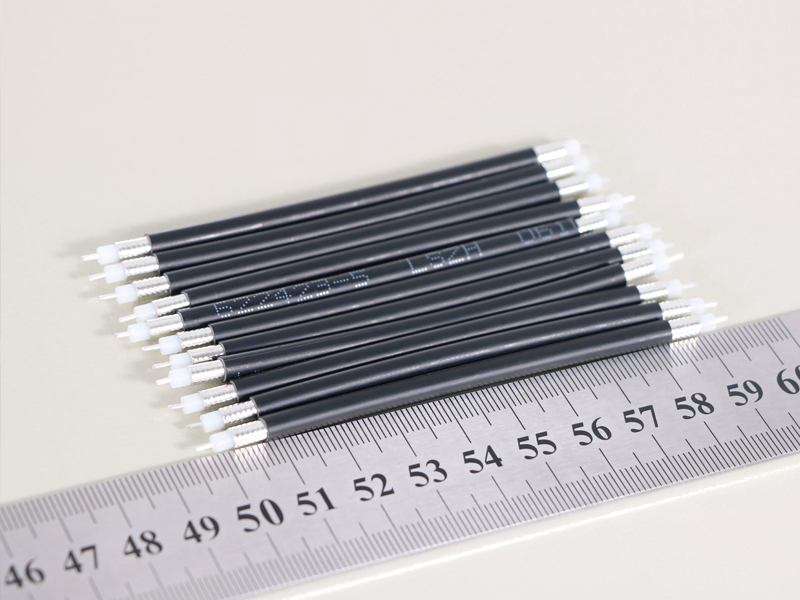

·Applicable wire: coaxial cable

·Cutting capacity: 50mm-9999mm

·Cutting line diameter range: 1.0-6.0mm (replace blade with a maximum of 8.5mm)

·Peel length: Max 100mm on the right end, Max 45mm on the left end

·Cutting accuracy: Length accuracy ± 1 ‰

·Peeling accuracy: ± 0.15mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 6 layers

·Display interface: Chinese and English LCD 153mm * 85mm

·Working power supply: AC220V/110V 50/60HZ

·Dimensions: 790 * 730 * 400mm

·Power: 800W

·Weight: 120kg

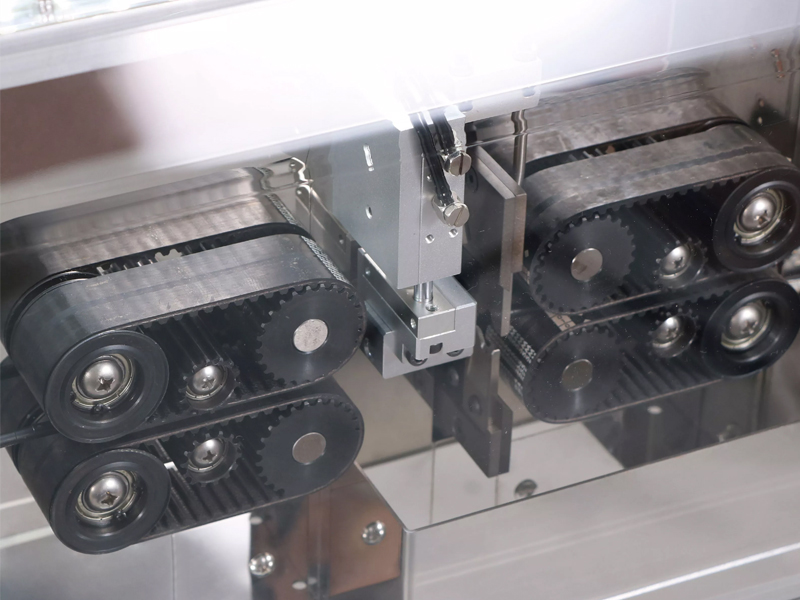

·Drive mode: motor/ball screw drive

·Peeling method: rotating knife+cutting peeling knife

·Tool material: imported tungsten steel+imported high-speed steel

·Working environment: A dry and vibration free workbench at -5-45 degrees Celsius

·Storage capacity: 40 types of processing parameter data (limited to 40 types)

·Production efficiency: 350-900pcs/h (depending on the viewing material)
