Characteristic description:

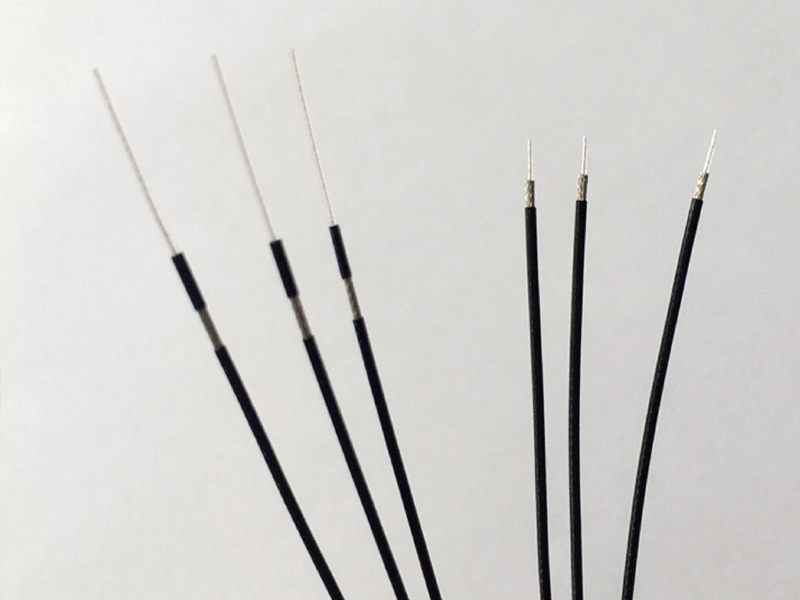

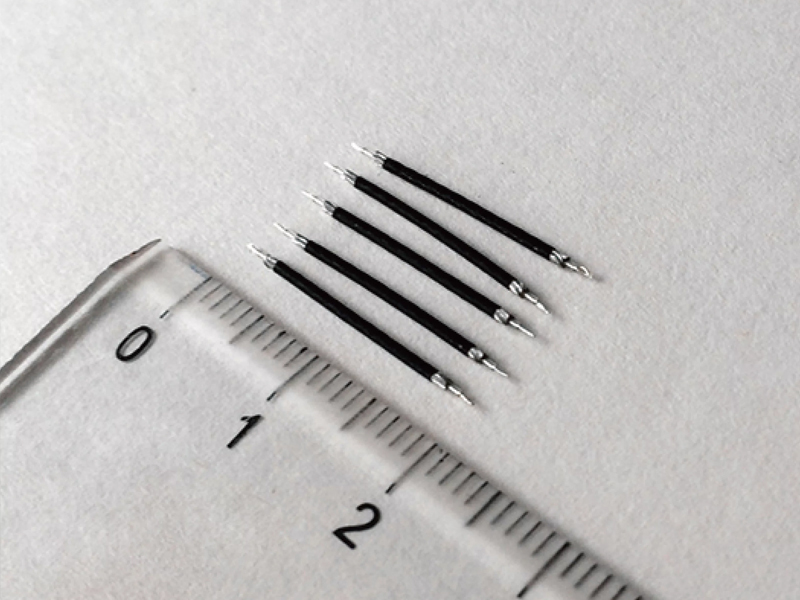

Suitable for precision machining of various flexible thin coaxial cables in the communication and RF industries. Silicone high-temperature wires, high elasticity wires, precision medical wires, and high-end automotive wires that cannot be processed by ordinary wire stripping machines can be perfectly processed on this machine without damaging the conductors.

Technical Specifications:

·Model: TK -9800

·Display mode: touch screen

·Applicable wire: coaxial cable

·Cutting line diameter range: 0.64-4.0mm

·Peel length: Right end max200mm, left end max45mm

·Peeling length setting unit: 0.01mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 6 layers

·Display interface: Chinese and English LCD 153mm * 85mm

·Working power supply: AC220V 50/60HZ

·Dimensions: 760 * 700 * 400mm

·Power: 800W

·Weight: 100kg

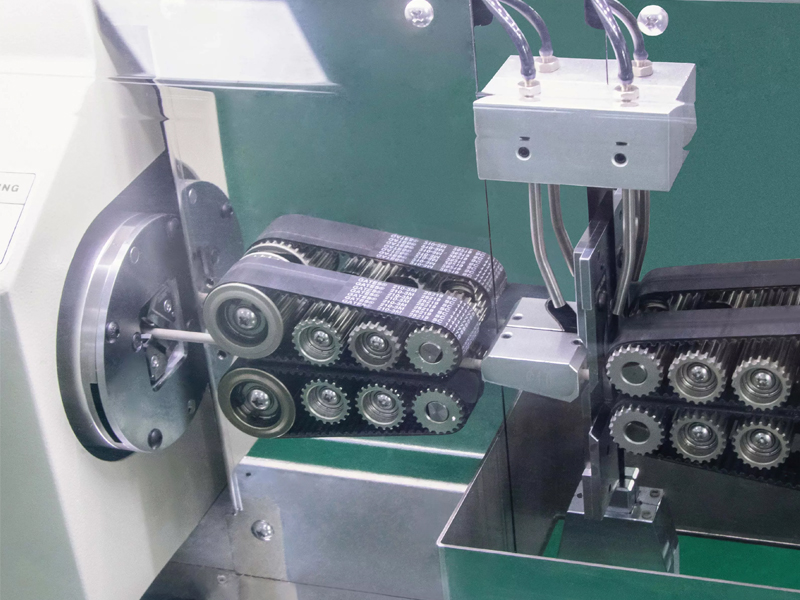

·Drive mode: motor/ball screw drive

·Peeling method: rotating knife+cutting peeling knife

·Tool material: imported tungsten steel+imported high-speed steel

·Working environment: A dry and vibration free workbench at -5-45 degrees Celsius

·Storage capacity: 40 types of processing parameter data (limited to 40 types)

·Production efficiency: 750-1300Pcs/h (depending on the line of sight material)
