1. Equipment purpose

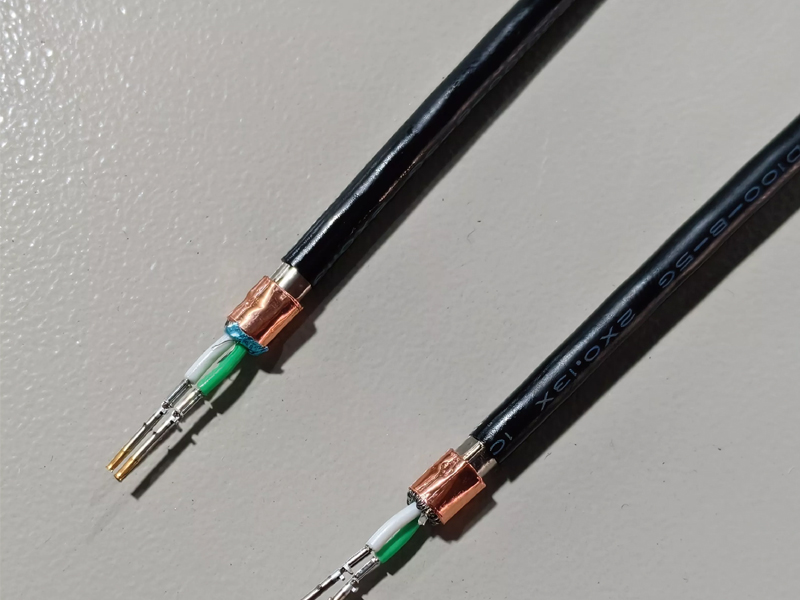

This equipment is mainly used for processing dual core Ethernet wire harnesses, achieving multi station automatic production function, greatly improving production efficiency, and ensuring product quality stability

2. Equipment workflow

Manual online → (automatic process) wire harness positioning → wire harness shaping → zero cutting → stripping → AOI detection (stripping) → terminal crimping → AOI detection (terminals) → finished product removal

3. Equipment parameters

·Model: DM-DL0605

·Crimp terminal: transverse continuous terminal

·Crimp force: 3T (real-time monitoring by pressure detection system)

·Wire diameter range: 1.0~4.0mm

·Peel length: 1-10mm

·Peeling accuracy: ± 0.05mm

·Position error: ± 0.05mm

·Drive system: stepper motor/servo motor

·Control system: Control card+15.6-inch industrial control integrated computer touch screen

·Detection system: industrial camera+pressure monitoring

·Detection accuracy: ± 0.01mm

·Working power supply: AC220V/110V 50/60HZ

·Gas source: 0.4~0.6Mpa (dry and oil-free)

·Power: 1500W

·Dimensions: 1200X850X2000mm

·Weight: Approximately 300kg

·Operation method: manual feeding

·Production efficiency: 700~800Pcs/h (varies depending on manual wire laying speed)
