Characteristic description:

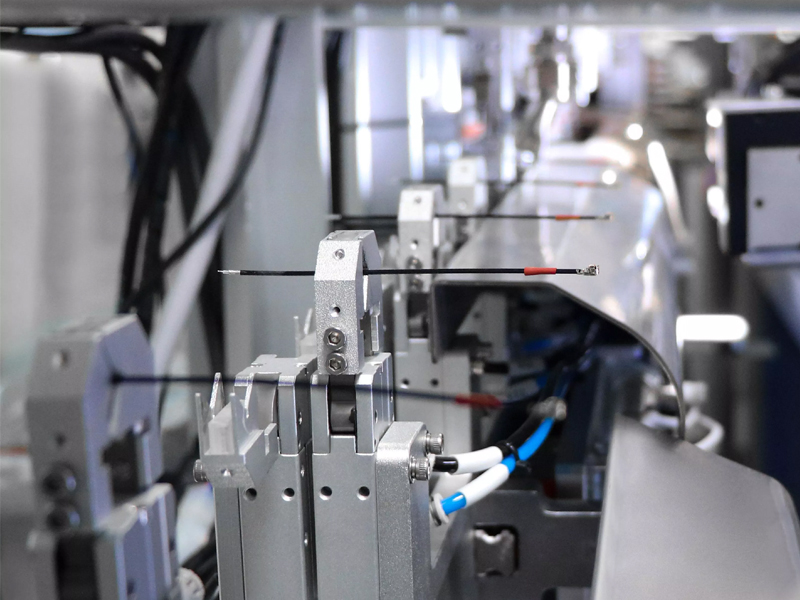

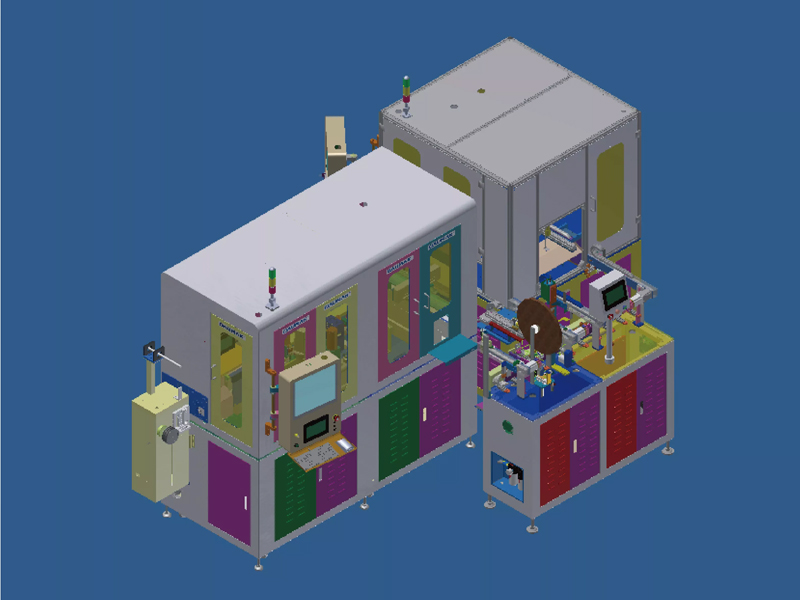

The equipment is fully automated to achieve automatic docking with the front-end tinning machine - automatic coding (optional) - automatic cutting of heat shrink tubing - automatic threading of heat shrink tubing - industrial visual inspection - terminal twist angle, automatic baking of heat shrink tubing, the entire process flow. And it can meet the docking of production process equipment such as back-end welding plates.

Equipment features:

1. Operating in straight back and forth transportation mode

2. Visual system detection, compensation position data, terminal twist angle

3. Heat shrink tubing, cutting, threading, baking

Technical Specifications:

·Model: DM-D0113

·Process scope: automatic coding (optional), automatic cutting of heat shrink tubing, automatic threading of heat shrink tubing, visual inspection, terminal twist angle, automatic baking of heat shrink tubing.

·Applicable wire diameter: 0.81-1.78mm

·Applicable wire length: 50mm-800mm

·Applicable terminals: Suitable for IPEX, Xuande, Kangshuo, Kexincheng, Caimei and other series terminals

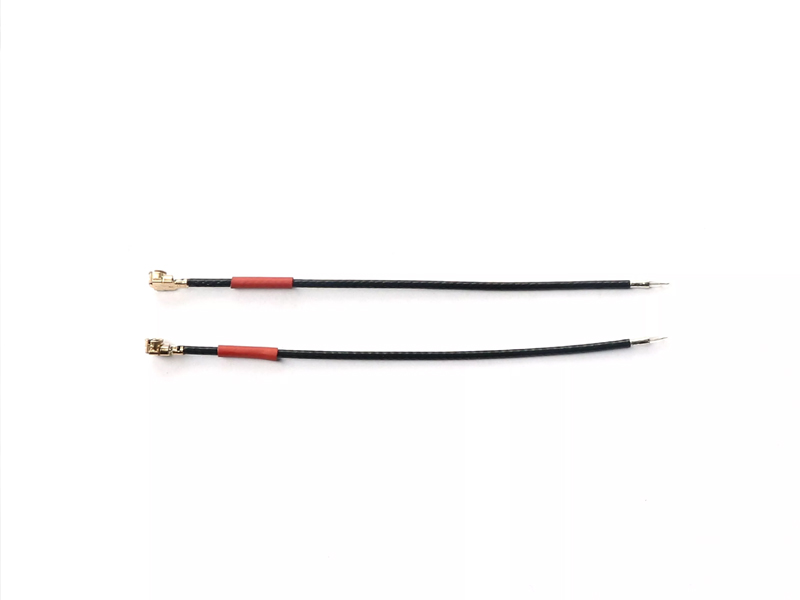

·The length range of heat shrink tubing is 8-12mm, with a maximum travel of 350mm through the tubing (the 350mm inner sleeve can be threaded to the root of the terminal).

·Equipment efficiency: 850-950 PCS/H (efficiency may vary depending on the length of the product line)

·Finished product yield: ≥ 97% (related to casing material)

·Equipment utilization rate: ≥ 95%

·Applicable working voltage: AC220V ± 10V

·Working pressure: ≥ 0.5Pa

·Total power of equipment: 2KW

·Weight: 150kg

·Dimensions: 1300 * 1000 * 1600mm
