Characteristic description:

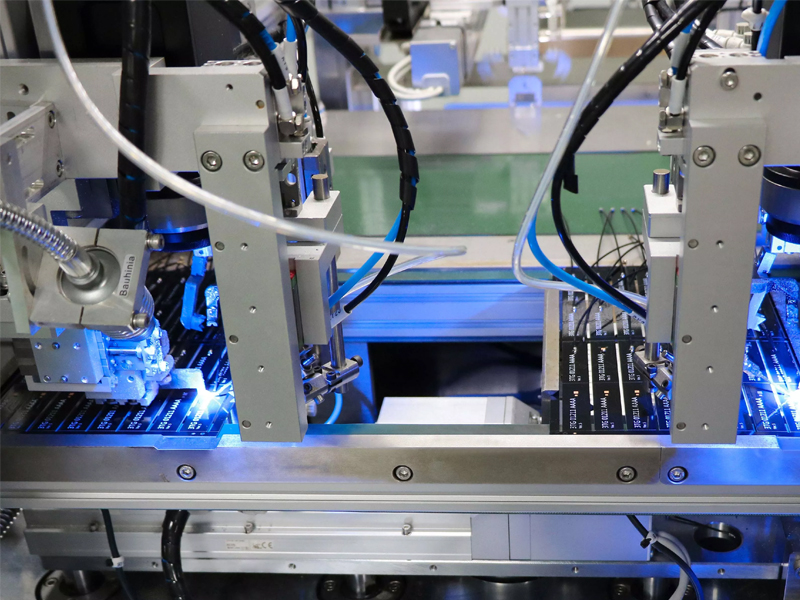

The equipment is connected to the front-end wire harness end tinning machine or the wire harness double head tinning machine, which can achieve full automation of automatic feeding of the entire PCB board, automatic feeding of coaxial lines, automatic welding of the entire PCB board, and automatic collection of finished products, completing the entire process flow.

Technical Specifications:

·Model: DM-C0402

·Cutting capacity: 50mm-400mm

·Processing diameter: 0.81-1.78mm

·Process scope: Automatic feeding of whole PCB board; Visual inspection; Automatic soldering of PCB board

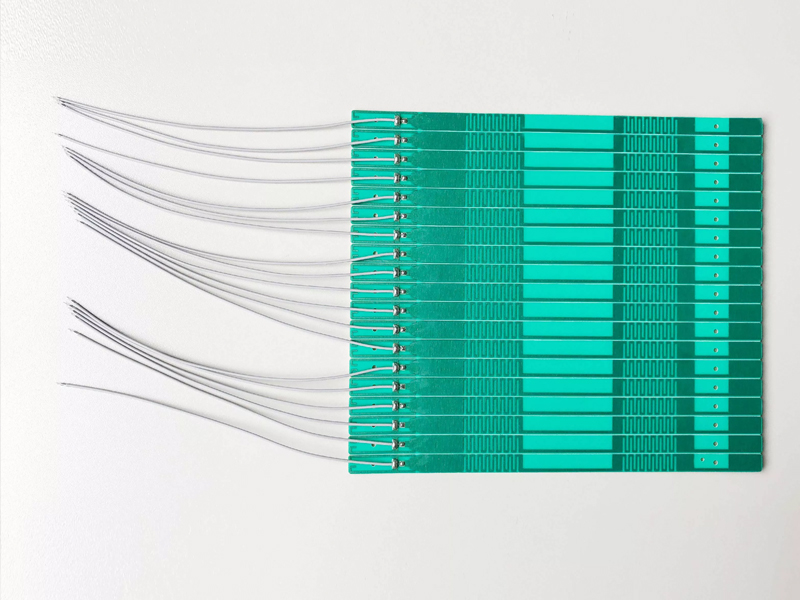

·Suitable for whole PCB board: Length range of whole PCB board: 200-250mm; Width range: 175-200mm

·Cutting depth setting unit: 0.01mm

·Equipment utilization rate: ≥ 95%

·Yield: ≥ 97%

·Working pressure: ≥ 0.5Pa

·Working voltage: AC220V ± 10V

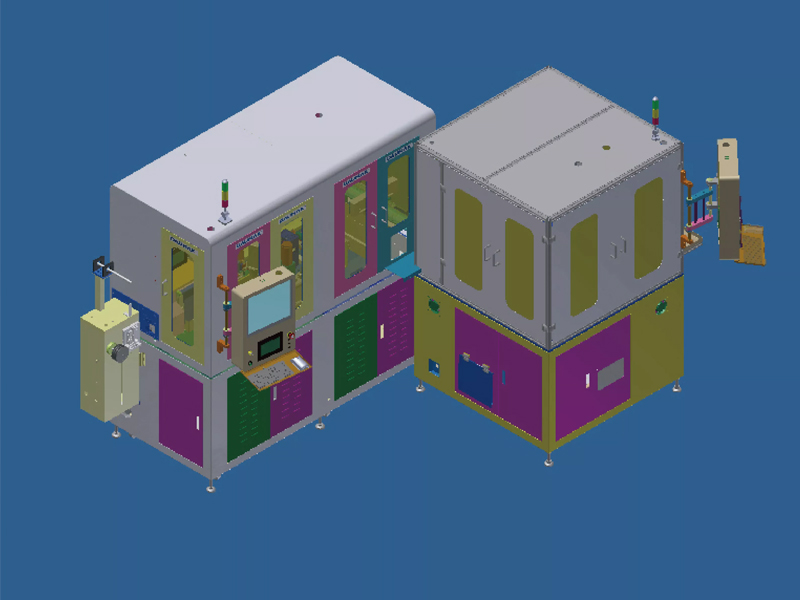

·Dimensions: 1500 * 1200 * 1900mm

·Total power of equipment: 3KW

·Weight: 1200kg

·Welder: soldering iron or laser (optional)

·Production efficiency: 800-1050PCS/H (efficiency will vary depending on the number of solder joints on the entire PCB board)
