Characteristic description:

① Dividing rotation mode operation;

② Visual inspection of incoming materials, precise positioning;

③ Adopting high-quality soldering iron welding system, stable and efficient;

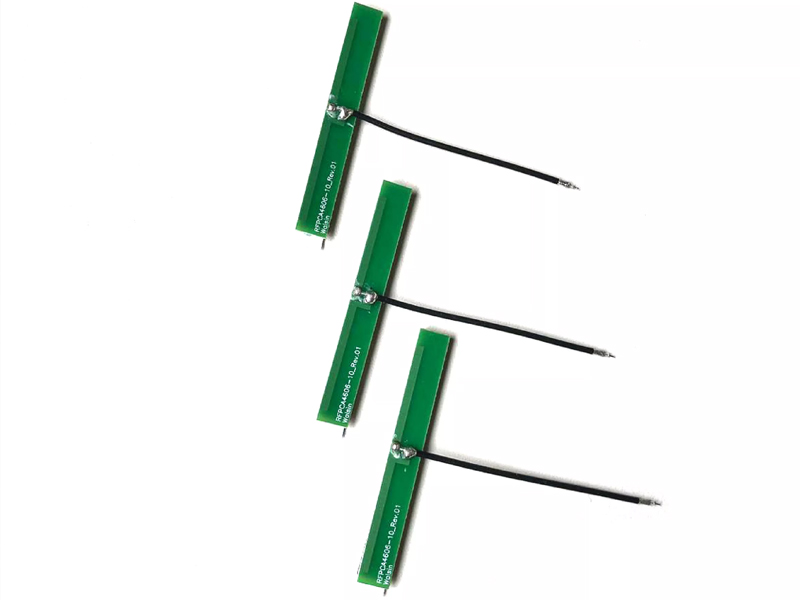

④ The core wire and braided layer are welded separately using independent workstations, and the size and height of the solder joints are controllable;

⑤ The terminal angle can be automatically adjusted with a tolerance of less than 10 °;

⑥ Can automatically apply backing adhesive (foam);

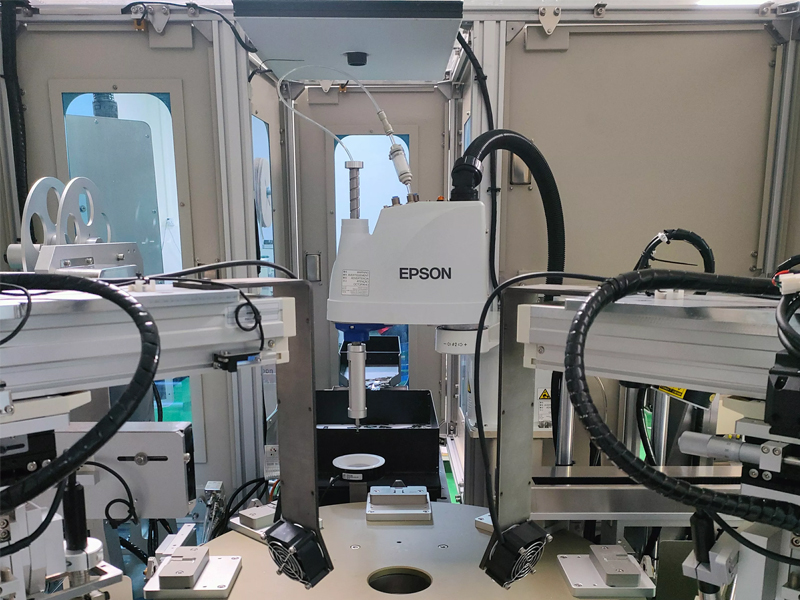

⑦ The PCB loading method can be optionally selected, with flexible vibration disc for material separation and mechanical arm for loading;

⑧ Can add dispensing, curing and other workstations;

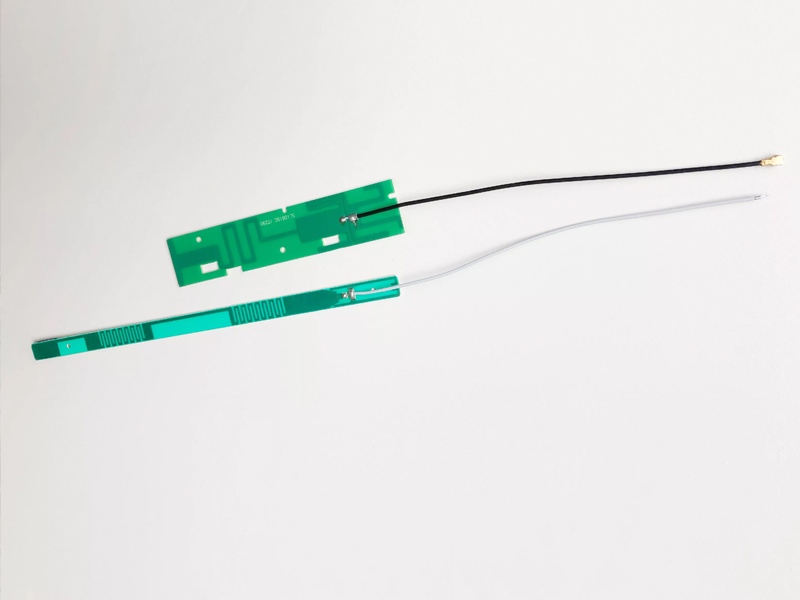

⑨ Can accommodate both FPC soft board and some iron parts welding.

Technical Specifications:

·Model: DM-A0901

·Cutting capacity: wire length 50-800mm, terminal direction 350mm

·Processing diameter: 0.81-1.78mm

·Cutting depth setting unit: 0.01mm

·Working pressure: above 0.5Mpa

·Yield: Finished product yield ≥ 97%

·Working voltage: AC220V ± 10V

·Dimensions: 2.6m (length) x 2m (widest point) Height approximately 2m, occupying an area of approximately 5.5m2

·Total power of equipment: 3KW

·Weight: 1000kg

·Production efficiency: 850-1000pcs/H (depending on wire stripping length)
