Characteristic description:

① Deep integration of automation, informatization, and intelligent manufacturing

② High security, high reliability, and high operability

③ Can connect backend welding plates and automatic assembly machines

Technical Specifications:

·Model: DM-C0401

·Cutting ability: A: 50-400 for single head soldering work B: 50-400 for double head tinning work

·Working mode: Dual turntable switching

·Processing diameter: 0.81-1.78mm

·Cutting depth setting unit: 0.01mm

·Processing accuracy: End stripping tolerance ± 0.1mm, total length tolerance ± 0.5mm

·Working pressure: ≥ 0.5Pa

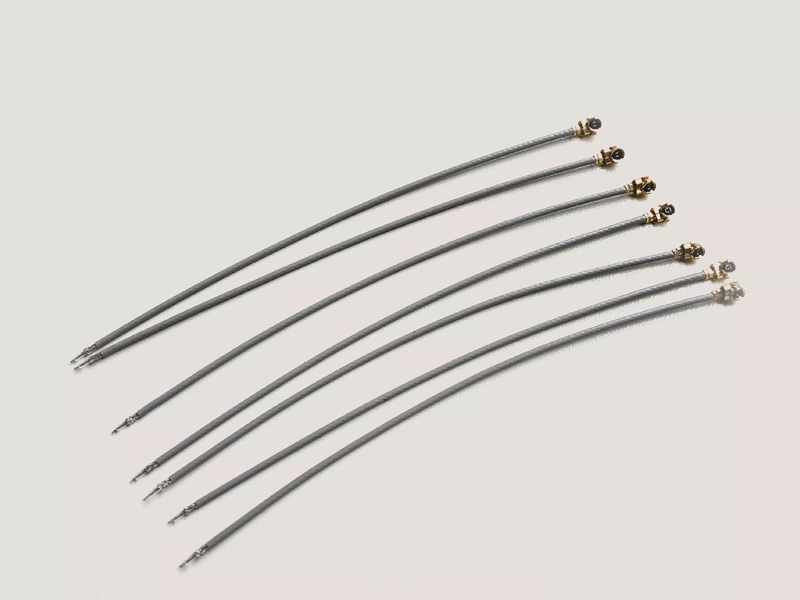

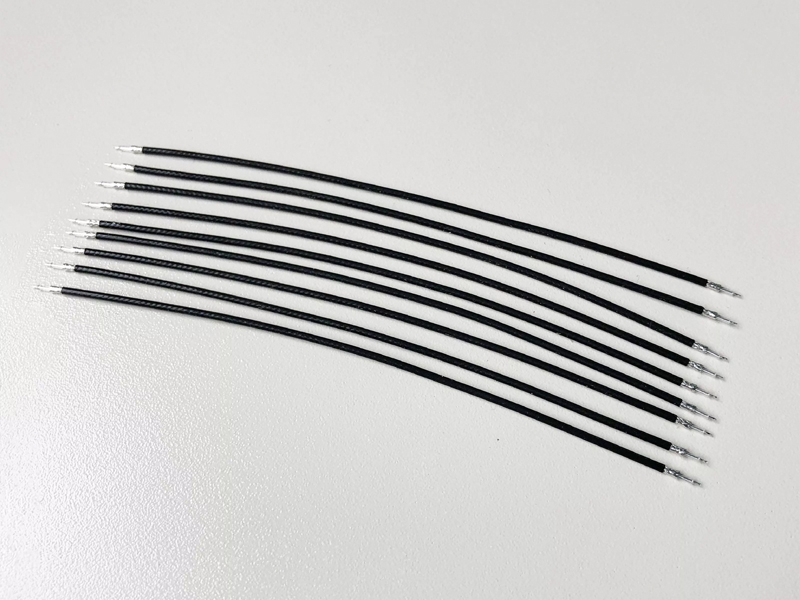

·Production process: Multi functional: single head soldering or double head tin dipping

·End range: Suitable for IPEX, Xuande, Kangshuo, Kexincheng, Caimei and other series terminals

·Applicable working voltage: AC220V ± 10V

·Dimensions: 1600 * 2000 * 2100mm

·Power: Approximately 3Kw

·Weight: 1500kg

·Production efficiency: 900-1200 PCS/H (depending on wire stripping length)

·Equipment utilization rate: ≥ 95%

·Finished product yield: ≥ 99% (data based on actual measurements of Shenyu brand wire and IPEX original terminal production)

·Electrical and visual inspection: high voltage short-circuit conductivity test, size inspection, position positioning
