Characteristic description:

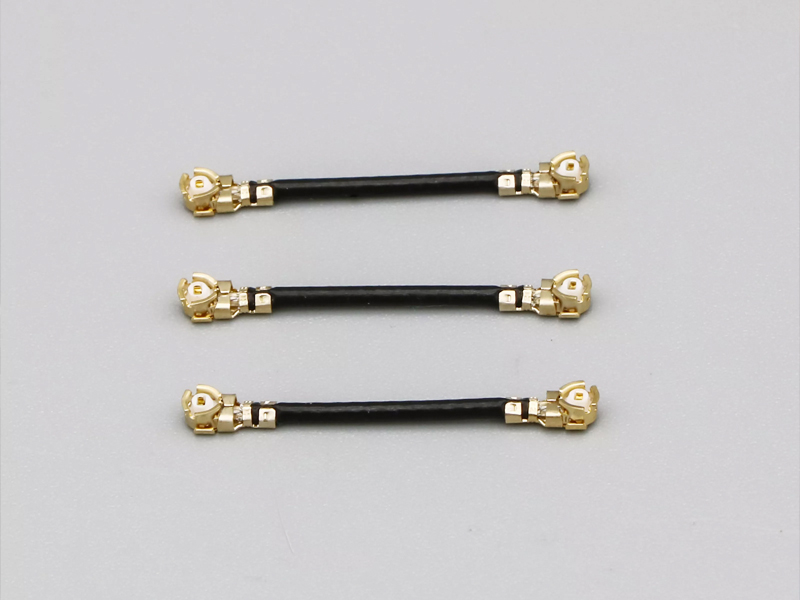

At present, there is a trend of "short", "thin" and "small" development in electronic products. This model is developed to meet the industry's requirement for the maximum processing length of coaxial jumpers. It has been widely used in small electronic products, especially wearable devices, with a minimum processing size of 25mm.

Technical Specifications:

·Model: DM-D0501

·Cutting capacity: 25-240mm

·Processing diameter: 0.81-1.78mm

·Cutting depth setting unit: 0.01mm

·Working power supply: AC220V ± 10V

·Working pressure: not less than 0.5Mpa

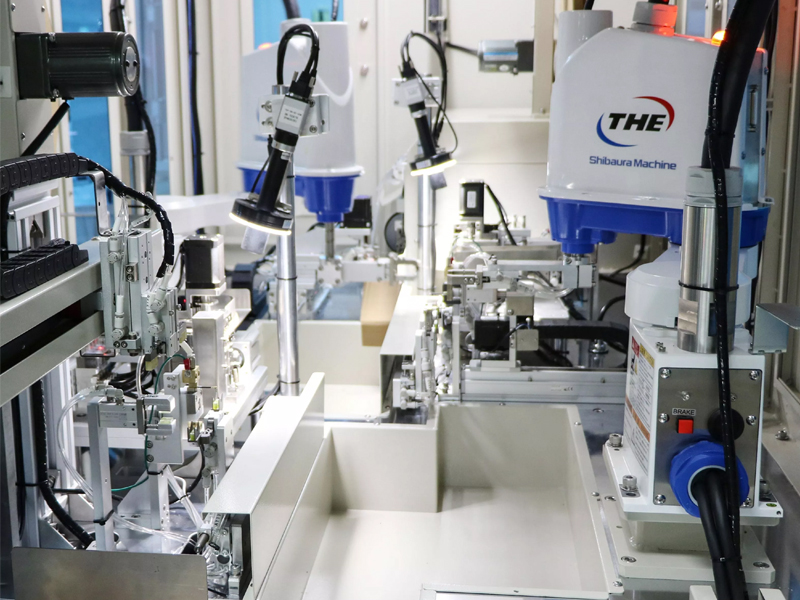

·Working mode: Dual robotic arm operation

·Production process: Double ended punching

·Mechanical arm: The arm must be a 4-axis arm (Toshiba/Epson from Japan)

·End range: Suitable for IPEX, Xuande, Kangshuo, Kexincheng, Caimei and other series terminals

·Dimensions: 2300 * 1600 * 2200mm

·Power: Approximately 2KW

·Weight: Approximately 1400kg

·Production efficiency: 850-1050PCS/H (depending on wire stripping length)

·Finished product yield: ≥ 99% (data based on actual measurements of Shenyu brand wire and IPEX original terminal production)

·Equipment utilization rate: ≥ 95%

·Electrical testing and visual inspection: high voltage short-circuit conductivity test, position positioning

·Processing accuracy: End stripping tolerance ± 0.1mm, total length tolerance ± 0.2mm
