Characteristic description:

This model combines precision coaxial wire stripping machine, robot, high-resolution vision technology, automatic wire stripping, automatic twisting of conductors, automatic riveting, automatic testing, automatic soldering flux and automatic tinning. Based on the original model, it has been further optimized and upgraded to increase the twisting conductor function. The overall linear design is simple and practical in structure, saving more space and having a high pass rate! Efficiency and performance have been greatly improved!

·Model: DM-N0708

·Brand: Dianzhen DAUMAK

·Equipment color: white

·Operation interface: touch screen and computer

·Working mode: Robot single head punching end

·Working pressure: not less than 0.5Mpa

·Production process: Single head soldering, single head tin dipping

·Robot: Adopting the Japanese EPSON quadcopter robot

·Visual software: EPSON original software from Japan

·Cutting capacity: 35mm-800mm (the stripping size of the 35mm tin immersed end does not exceed 5mm)

·Peel size: 0.1-30mm

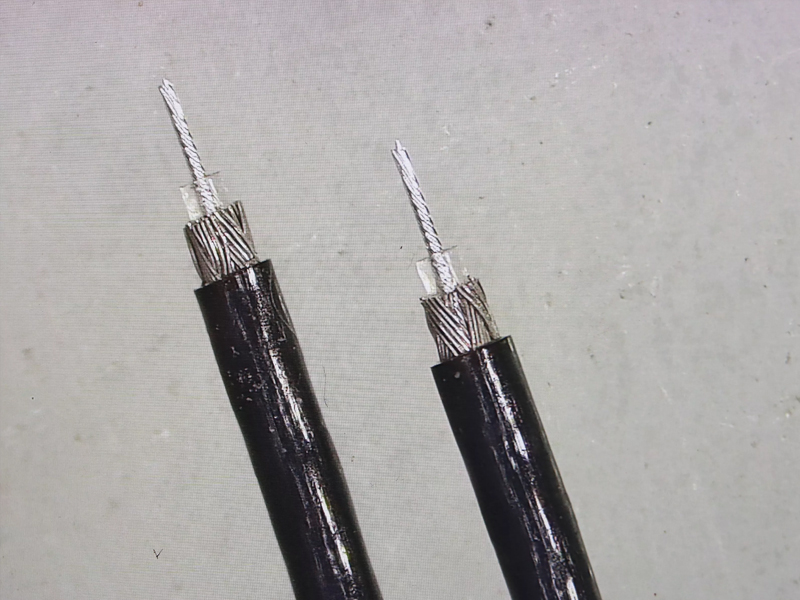

·Wire range: wire diameter 0.64-1.78mm coaxial line

·Cutting depth setting unit: 0.01mm

·Working power supply: AC220V ± 10V

·Dimensions: 2350 * 1500 * 2200mm

·Power: Approximately 2KW

·Weight (net weight): 900Kg

·Production efficiency: 950-1240PCS/H (depending on wire stripping length)

·Finished product yield: ≥ 99.7% (tested in production with ordinary 1.13 high-quality coaxial line and 1.13-1 generation high-quality terminals)

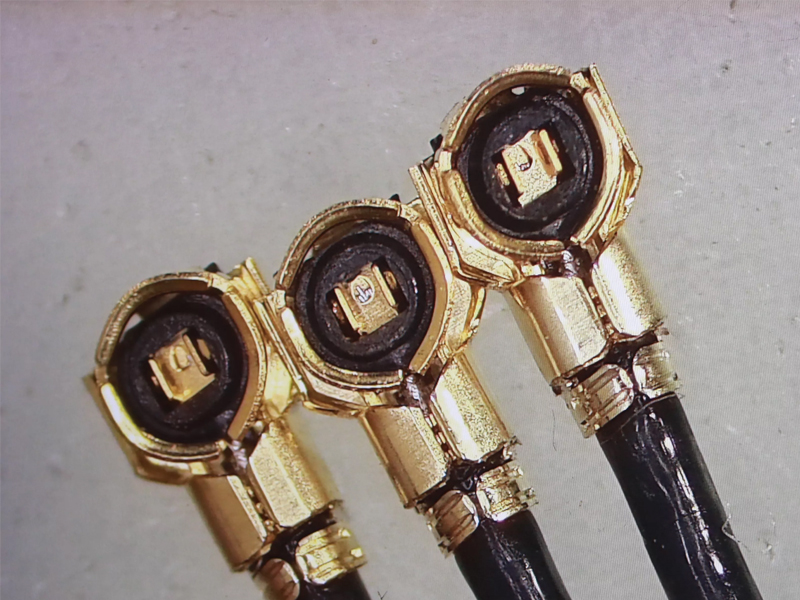

·End range: Suitable for Ipex original factory and other brand RF terminals 1-5 generations

·Equipment utilization rate: ≥ 95%

·Electrical and visual inspection: high voltage short-circuit conductivity test, size inspection, position positioning

·Processing accuracy: End stripping tolerance ± 0.1mm, total length tolerance ± 0.5mm
