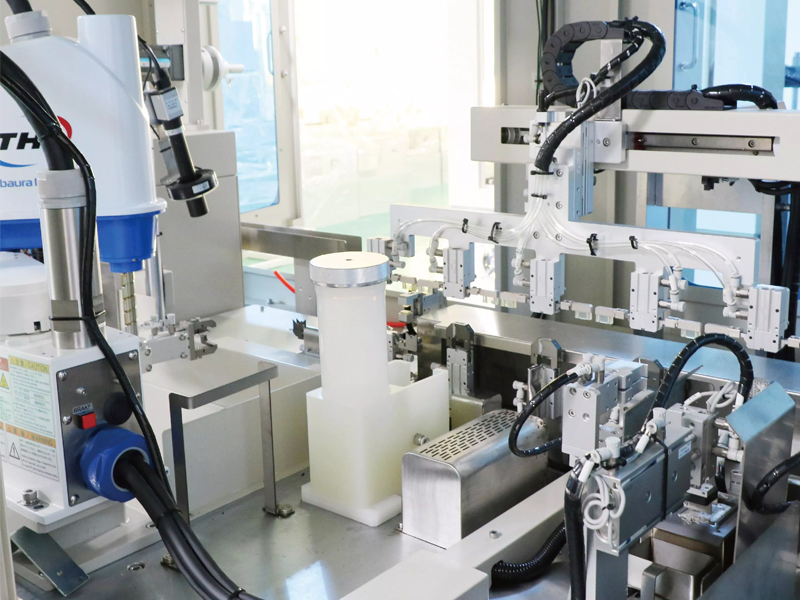

Characteristic description:

The equipment can fully automate the entire process of automatic wire stripping, automatic detection, automatic terminal connection, automatic tin dipping, automatic electrical testing, and automatic material receiving, and can meet the docking of production process equipment such as back-end soldering boards.

Technical Specifications:

·Model: DM - D0706

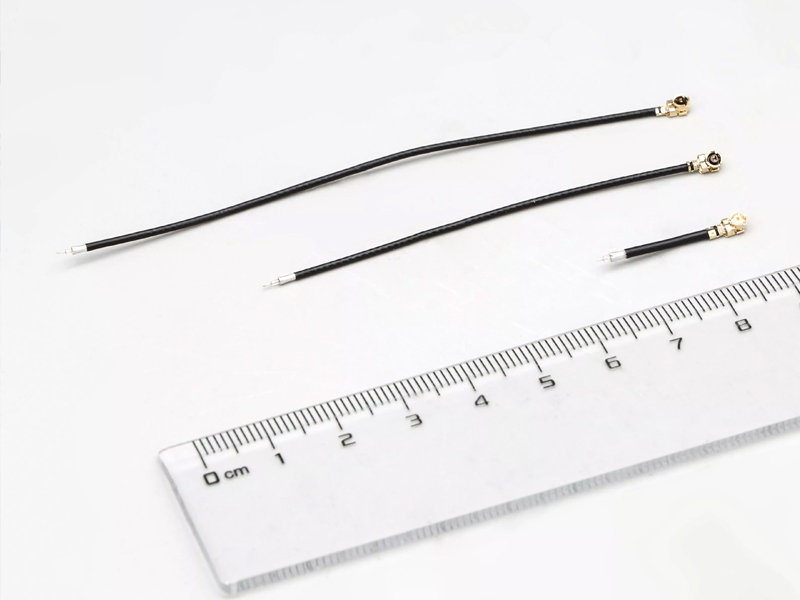

·Cutting capacity: 25mm-200mm (the stripping size of the tin immersed end of the 25mm product should not exceed 5mm)

·Processing diameter: 0.81-1.78mm

·Working mode: Robot arm single end punching

·Production process: Single head soldering, single head tin dipping

·Mechanical arm: The arm must be a 4-axis arm (Toshiba/Epson from Japan)

·End range: Suitable for IPEX, Xuande, Kangshuo, Kexincheng, Caimei and other series terminals

·Cutting depth setting unit: 0.01mm

·Equipment utilization rate: ≥ 95%

·Finished product yield: ≥ 99% (based on actual measurements of Shenyu brand wire and IPEX original terminal production, with a total wire length greater than 30mm)

·Working pressure: not less than 0.5Mpa

·Working power supply: AC220V ± 10V

·Dimensions: 2300 * 1500 * 2200mm

·Power: 2kW

·Weight: 850kg

·Electrical and visual inspection: high voltage short-circuit conductivity test, size inspection, position positioning

·Processing accuracy: End stripping tolerance ± 0.1mm, total length tolerance ± 0.2mm

·Production efficiency: 700-1000PCS/H (depending on wire stripping length)
