Characteristic description:

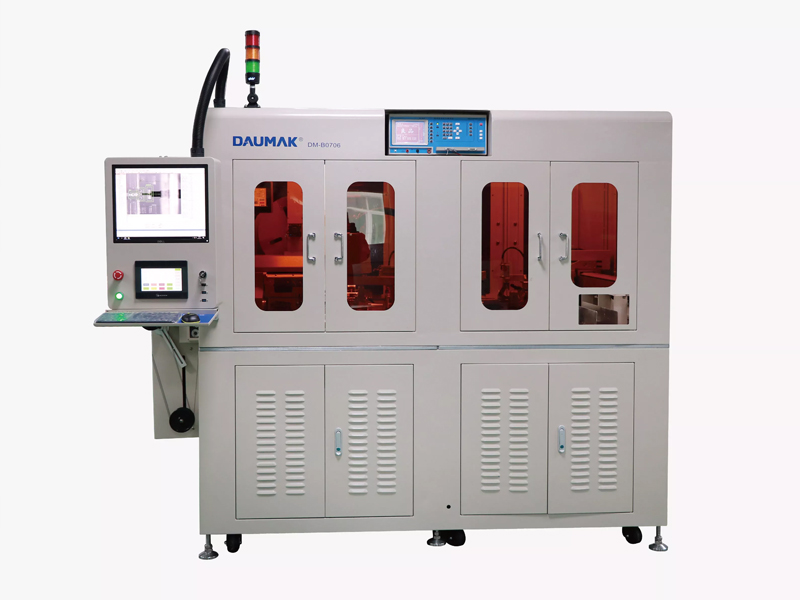

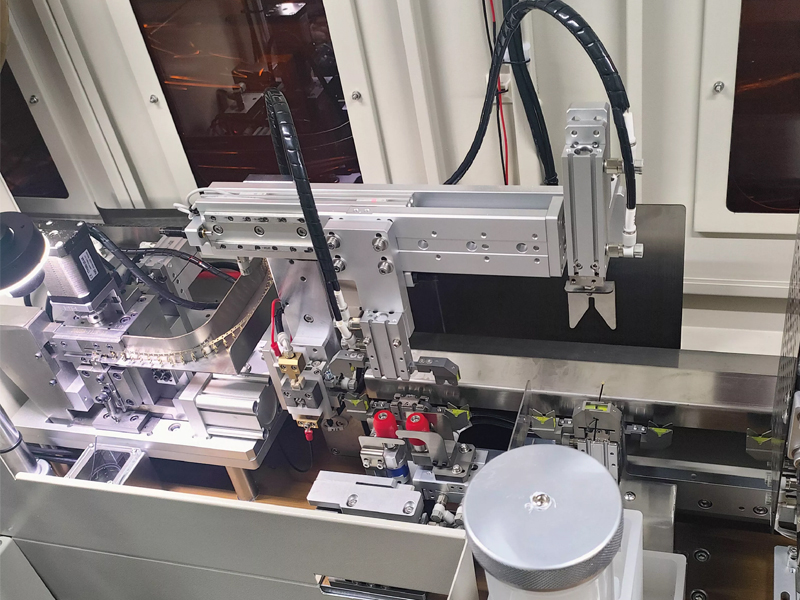

This model combines precision coaxial wire stripping machine, robot, high-resolution vision technology, automatic riveting, automatic testing, automatic soldering flux and automatic tinning. It is further optimized and upgraded on the basis of the original model, with an overall linear design, simple and practical structure, more space saving, and high through rate! Efficiency and performance have been greatly improved!

Technical Specifications:

·Model: DM-B0706

·Brand: Dianzhen DAUMAK

·Equipment color: white

·Operation interface: touch screen and computer

·Working mode: Robot single head punching end

·Working pressure: not less than 0.5Mpa

·Production process: Single head soldering, single head tin dipping

·Robot: Adopting the Japanese EPSON quadcopter robot

·Visual software: EPSON original software from Japan

·Cutting capacity: 35mm-800mm (the stripping size of the 35mm tin immersed end does not exceed 5mm)

·Peel size: 0.1-30mm

·Wire range: wire diameter 0.64-1.78mm coaxial line

·Cutting depth setting unit: 0.01mm

·Working power supply: AC220V ± 10V

·Dimensions: 2300 * 1500 * 2200mm

·Power: Approximately 2KW

·Weight (net weight): 900Kg

·Production efficiency: 950-1240PCS/H (depending on wire stripping length)

·Finished product yield: ≥ 99.7% (tested in production with ordinary 1.13 high-quality coaxial line and 1.13-1 generation high-quality terminals)

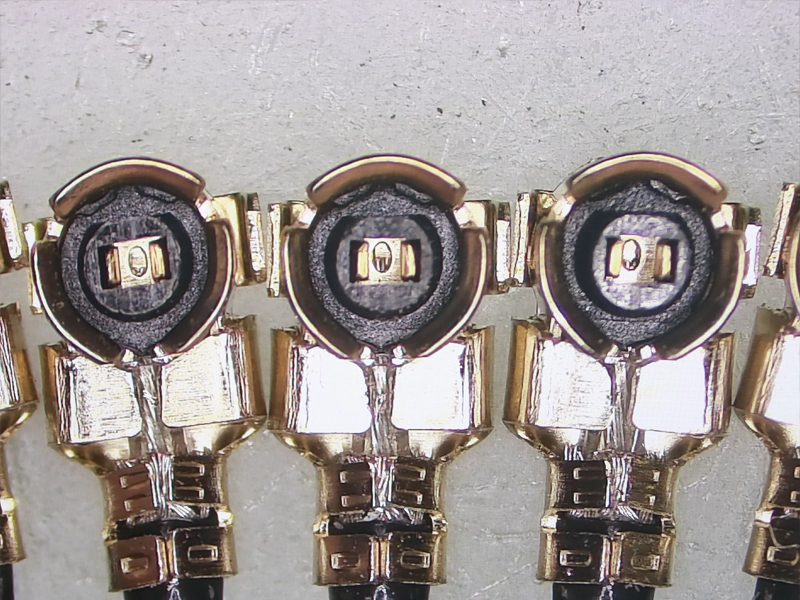

·End range: Suitable for Ipex original factory and other brand RF terminals 1-5 generations

·Equipment utilization rate: ≥ 95%

·Electrical and visual inspection: high voltage short-circuit conductivity test, size inspection, position determination

·Processing accuracy: End stripping tolerance ± 0.1mm, total length tolerance ± 0.5mm
