Characteristic description:

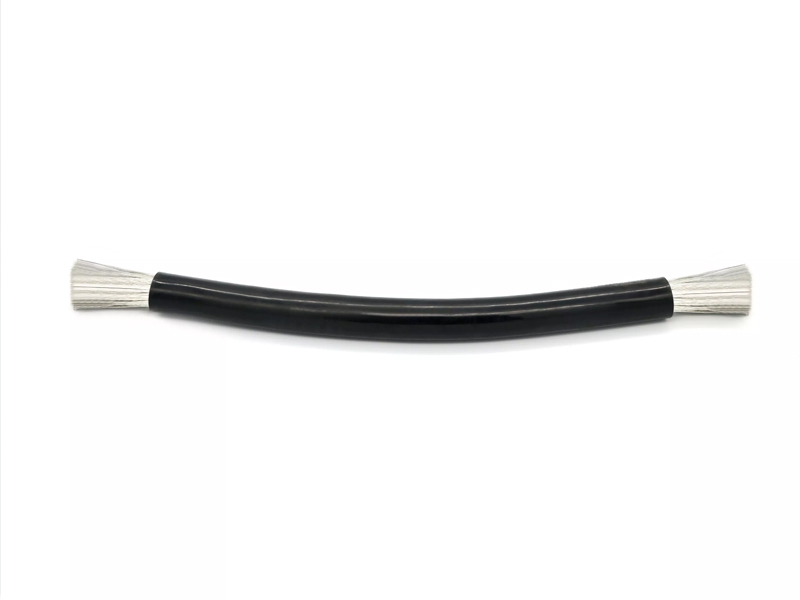

This series of models is designed for cable stripping requirements such as new energy charging guns, which require special thickness and high quality. After processing with this series of models, the cable stripping ends are neat, without damaging the inner layer, and the appearance is more perfect!

Technical Specifications:

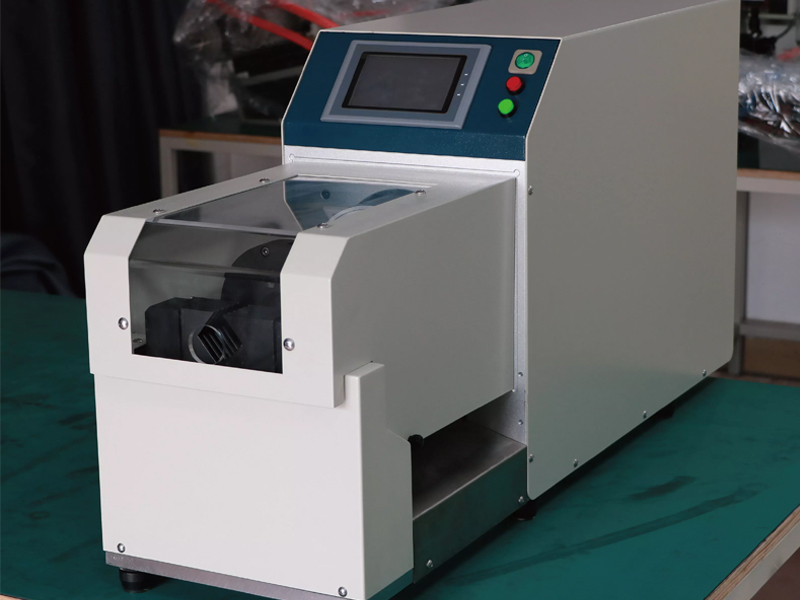

·Model: DM -3515

·Display mode: touch screen

·Applicable wires: new energy cables, coaxial cables, power cables, etc

·Cutting depth setting unit: 0.01mm

·Peeling length setting unit: 0.01mm

·Cutting line diameter range: 3-30mm

·Stripping length: 0-150mm

·Maximum number of peeling layers: 9 layers

·Display interface: Chinese and English LCD 95mm * 50mm

·Working power supply: AC220V/110V 50/60HZ

·Power: Approximately 2000W

·Weight: 108kg

·Dimensions: 1000 * 285 * 490mm

·Drive mode: motor/ball screw drive

·Startup method: Foot pedal button delay (top rod needs to be customized)

·Tool material: Imported mold steel

·Blade quantity: 4 rotating blades

·Working environment: A dry and vibration free workbench at -5-45 degrees Celsius

·Storage capacity: 99 types of processing parameter data
