Technical Specifications:

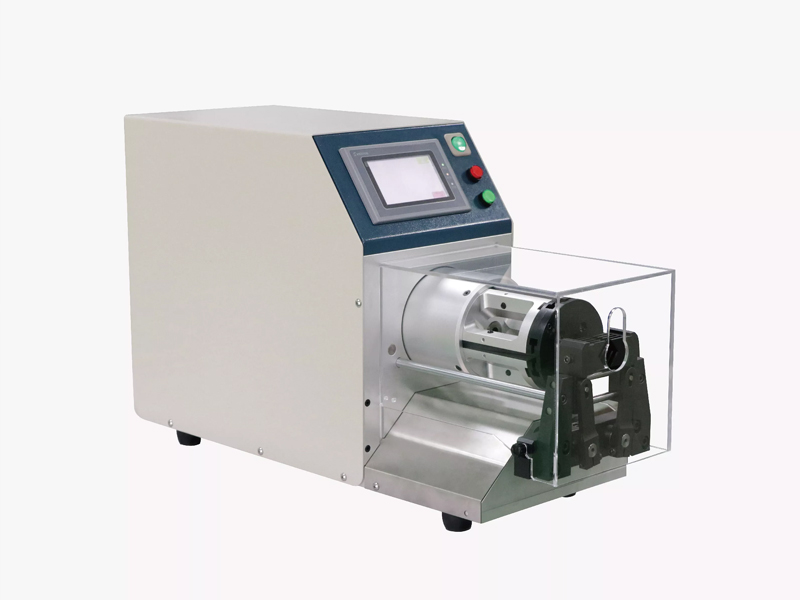

·Model: DM -2310

·Display mode: touch screen

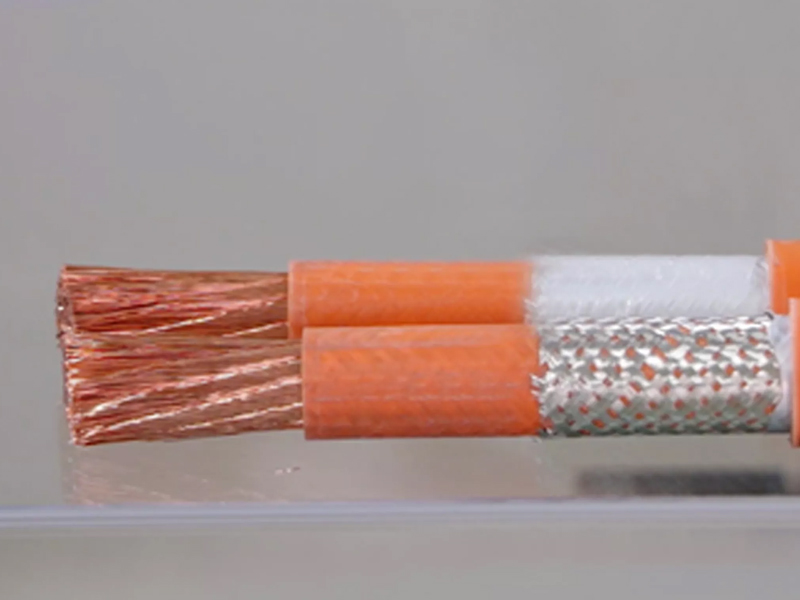

·Applicable wires: coaxial cable, corrugated tube cable, new energy cable

·Display interface: Chinese and English LCD 95mm * 50mm

·Working power supply: AC220V/110V 50/60HZ

·Power: 600W

·Stripping length: 0-100mm

·Dimensions: 680 * 240 * 400mm

·Peeling length setting unit: 0.01mm

·Weight: 45.5kg

·Cutting line diameter range: 2-23mm

·Drive mode: motor/ball screw drive

·Cutting depth setting unit: 0.01mm

·Tool Material: Imported Mold Steel/Imported Tungsten Steel

·Blade quantity: 4 rotating blades

·Maximum number of peeling layers: 9 layers

·Storage capacity: 99 types of processing parameter data

·Production efficiency: 400-800Pcs/h (depending on the line of sight material)
