Characteristic description:

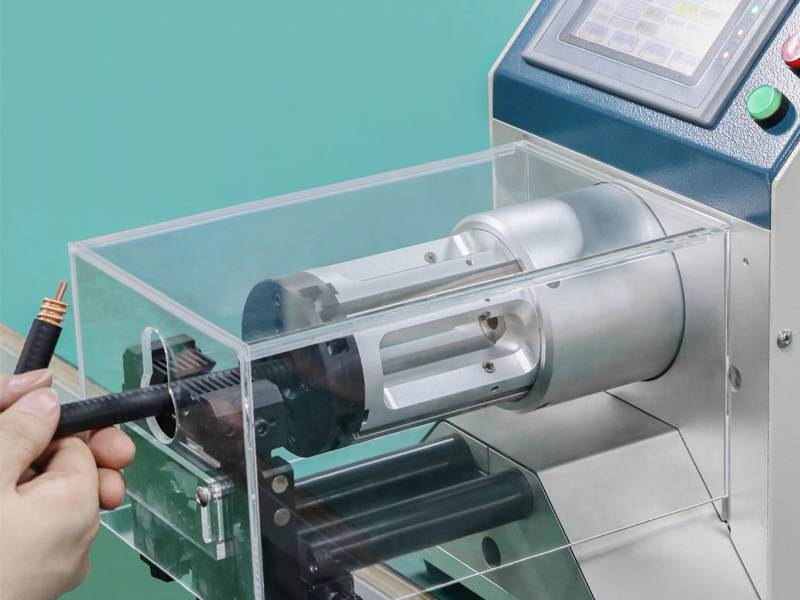

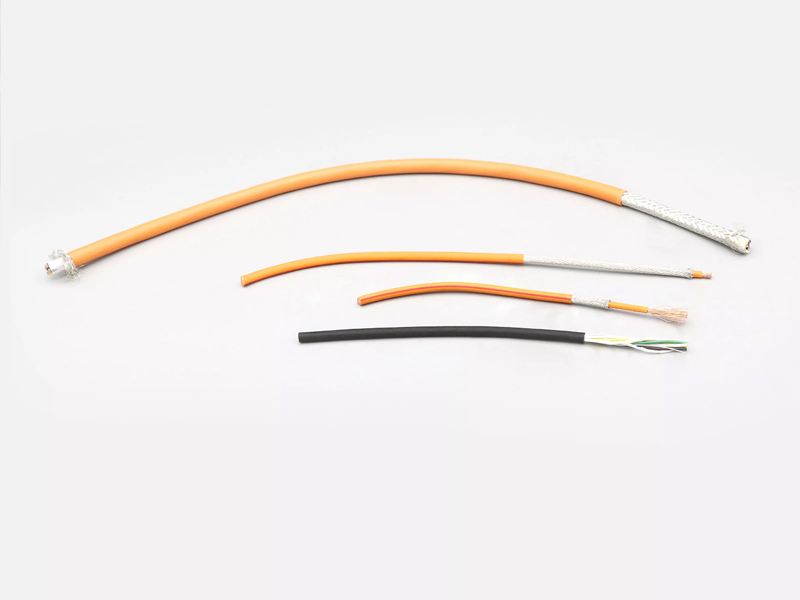

Suitable for various thicker and harder skinned power cables, coaxial cables, new energy wire harnesses, etc; The rotating blade design of the four blade knife ensures that the stripped edges of the processed wire harness are neat; Intelligent operation, precision grade ball screw and multi position motion control system, stable and efficient in performance; The human-machine interface is easy to operate and can meet special requirements such as multi-layer peeling, multi-stage peeling, and automatic continuous startup.

Technical Specifications:

·Model: DM-8608

·Display mode: touch screen

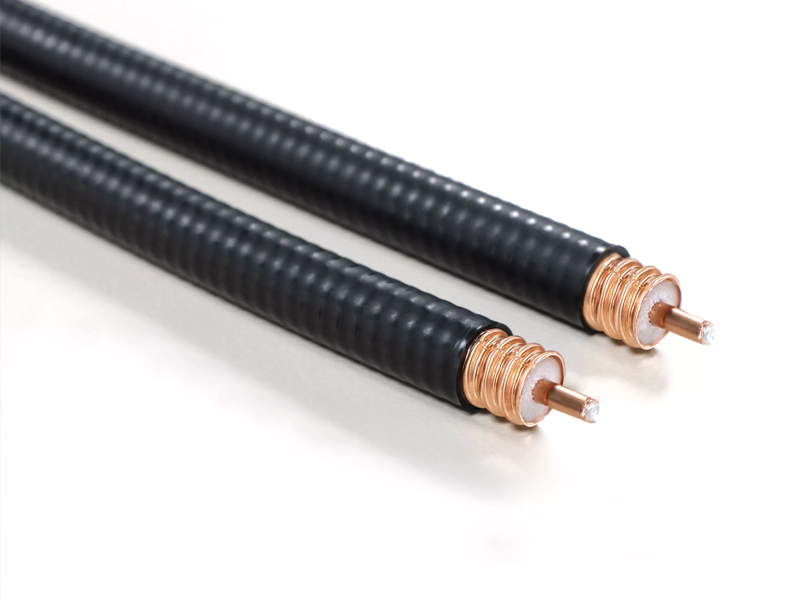

·Applicable wires: coaxial cable, corrugated tube cable, new energy cable

·Display interface: Chinese English LCD

·Working power supply: AC220V/110V 50/60HZ

·Power: 600W

·Maximum stripping length: 0-90mm

·Dimensions: 720 * 230 * 350mm

·Peeling length setting unit: 0.01mm

·Weight: 42kg

·Cutting line diameter range: 1.5-18mm

·Drive mode: motor/ball screw drive

·Cutting depth setting unit: 0.01mm

·Peeling method: 4-piece rotating knife

·Maximum number of peeling layers: 9 layers

·Tool material: Imported tungsten steel

·Working environment: A dry and vibration free workbench at -5-45 degrees Celsius

·Storage capacity: 99 types of processing parameter data

·Production efficiency: 400-800Pcs/h (depending on the line of sight material)
