Characteristic description:

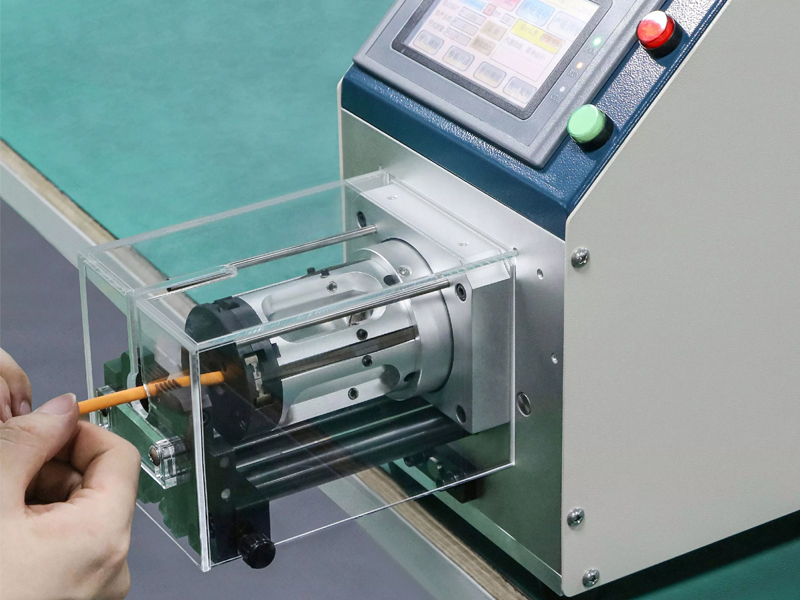

This model is an improved coaxial wire stripping machine based on DM-5806. The blade part is designed with a 4-piece rotating blade structure, which enables it to perform better when processing thicker and harder cables.

Technical Specifications:

·Model: DM-6806D

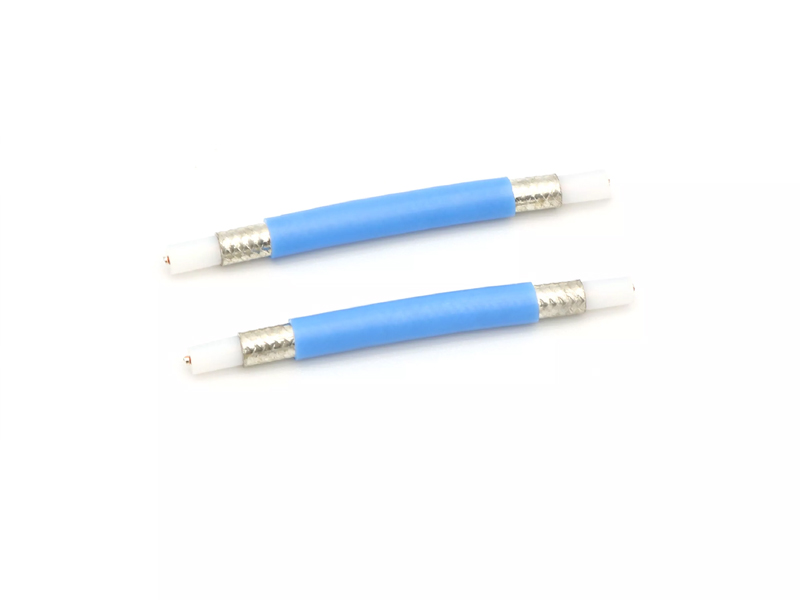

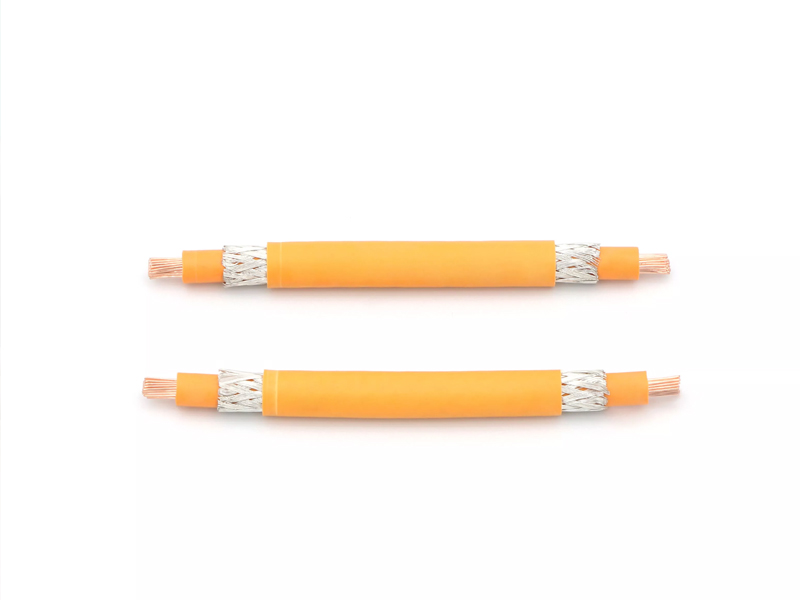

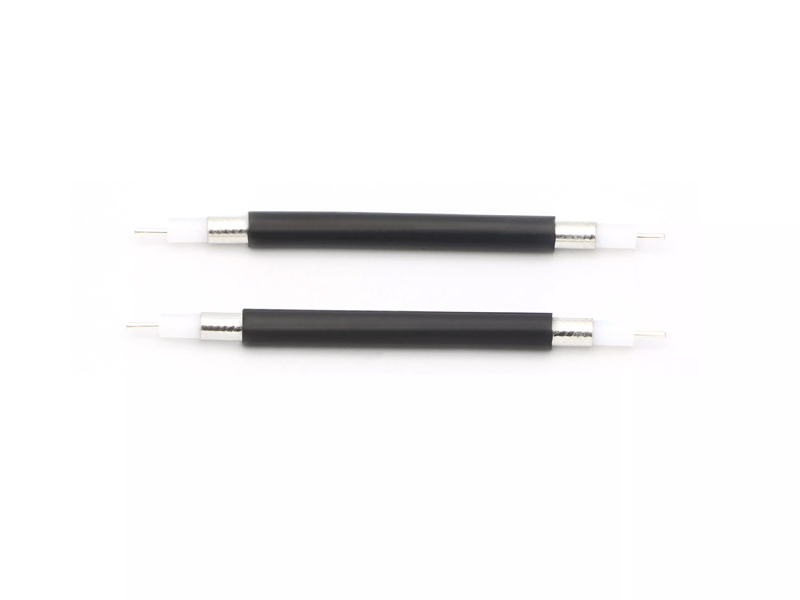

·Applicable wires: coaxial line, high-temperature line, 141 base station line, new energy line

·Maximum stripping length: 0-65mm

·Peeling length setting unit: 0.01mm

·Cutting line diameter range: 1.5-9.5mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 9 layers

·Display mode: touch screen

·Display interface: Chinese and English LCD 95mm * 50mm

·Working power supply: AC220V/110V 50/60HZ

·Power: 400W

·Dimensions: 600 * 185 * 280mm

·Weight: 28kg

·Drive mode: motor/ball screw drive

·Tool material: Imported tungsten steel

·Blade quantity: 4 rotating blades

·Working environment: A dry and vibration free workbench at -5-45 degrees Celsius

·Storage capacity: 99 types of processing parameter data

·Production efficiency: 700-1200pcs/h (depending on the line of sight material)
