Characteristic description:

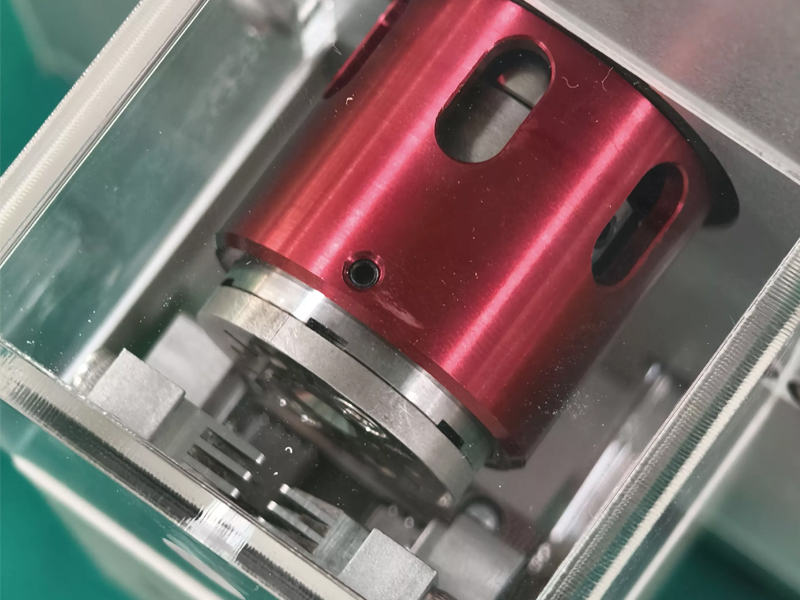

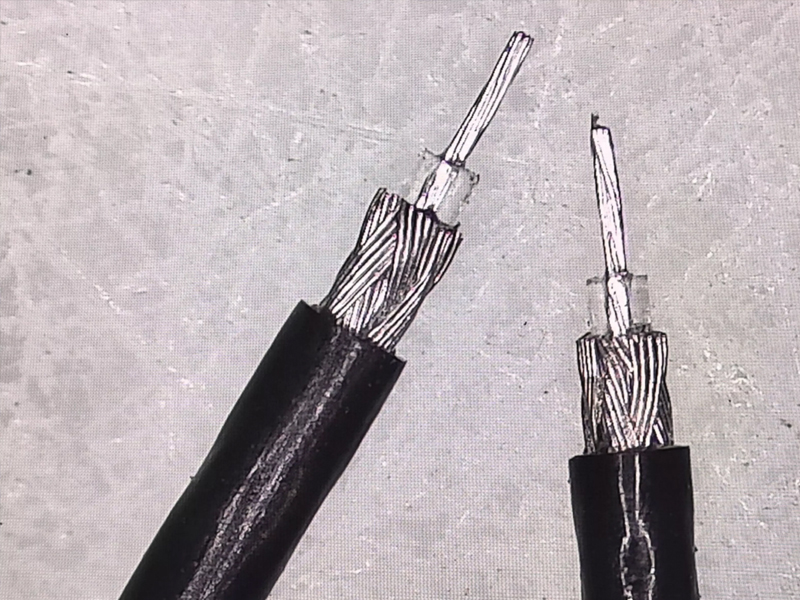

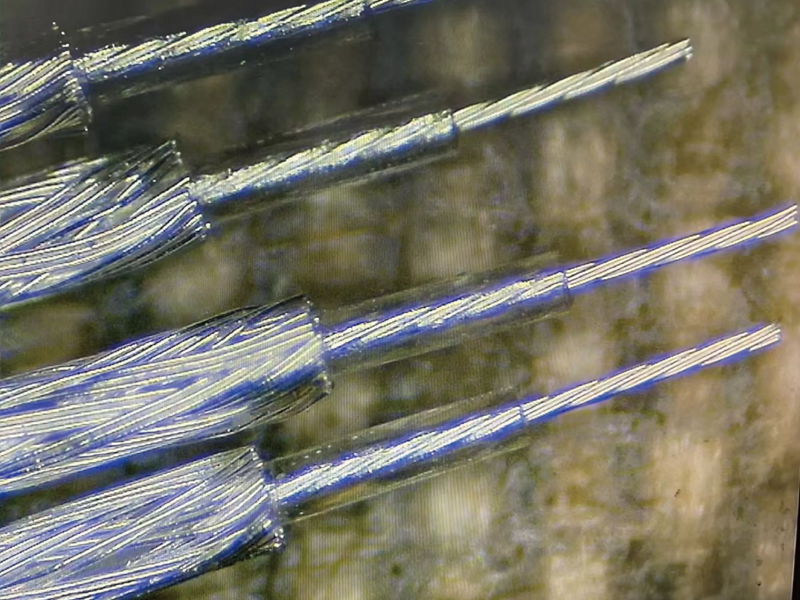

Suitable for the communication and medical industries, the stripping process of extremely fine and flexible coaxial wire harnesses is neat and precise, without damaging the conductor. The human-machine interface is simple and easy to understand, and can strip up to 6 layers. It can store up to 99 types of processing data. The rotating blade head, three rotating blades, and three wire protection blades are designed with exquisite structure to improve the stability of wire stripping and the service life of the blades. The machine can automatically absorb and collect wire skin waste. The compact structure of the whole machine can be used with automatic machines.

Technical Specifications:

·Model: DM-1208

·Applicable wires: coaxial ultra-fine medical wires, etc

·Maximum stripping length: 0-20mm

·Peeling length setting unit: 0.01mm

·Cutting line diameter range: 0.4-1.8mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 6 layers

·Display mode: touch screen

·Display interface: Chinese and English LCD 85mm * 50mm

·Working power supply: AC220V/110V 50/60HZ

·Power: 300W

·Number of blades: 3 pieces

·Number of wire protectors: 3 pieces

·Dimensions: 310X160X280mm

·Weight: 18kg

·Drive mode: screw motor drive

·Tool material: Imported tungsten steel

·Wire scrap: automatic suction collection

·Working environment: A dry and vibration free workbench at -5-45 degrees Celsius

·Storage capacity: 99 types of processing parameter data

·Production efficiency: 750-1150Pcs/h (depending on the viewing material)
