Characteristic description:

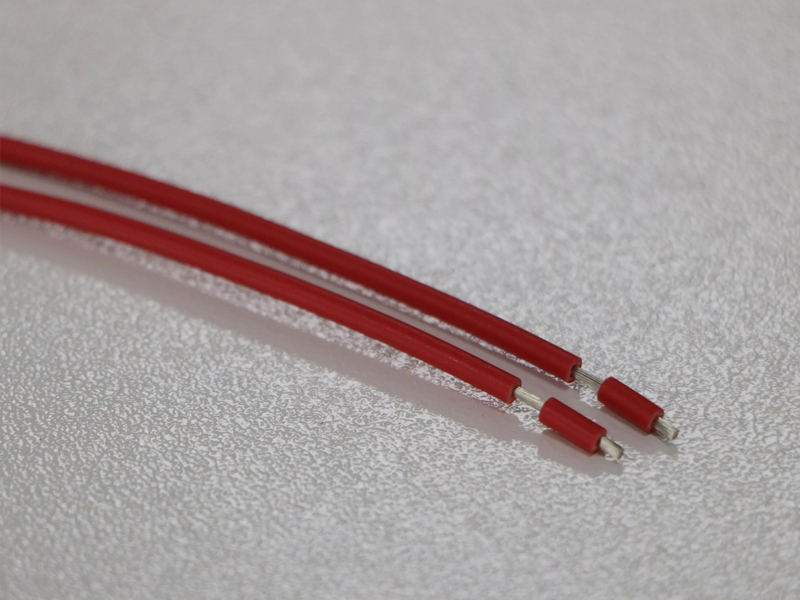

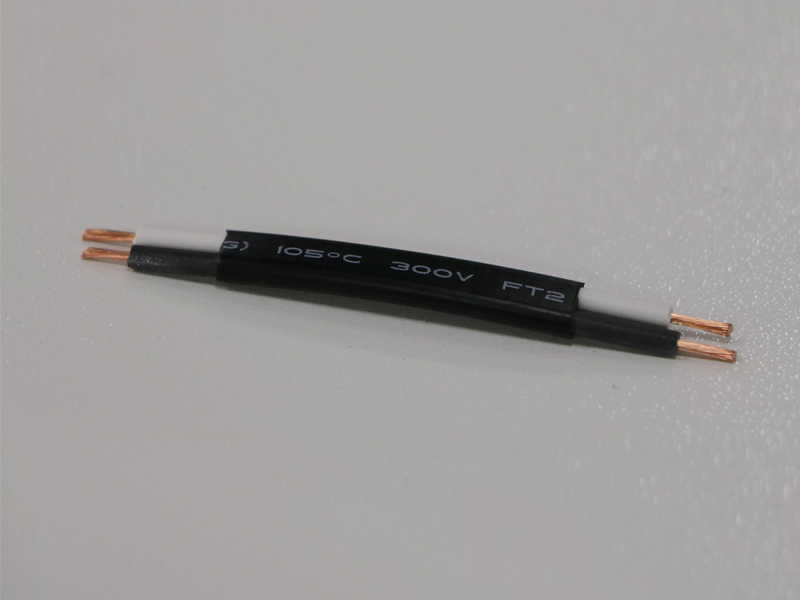

The stripping edge of the wire is neat, the length is precise, and it will not damage the conductor. Up to 4 layers can be peeled and up to 99 processing parameters can be saved. The cutting tools are made of imported tungsten steel or imported high-speed steel, which are sharp and durable, and easy and convenient to replace.

Technical Specifications:

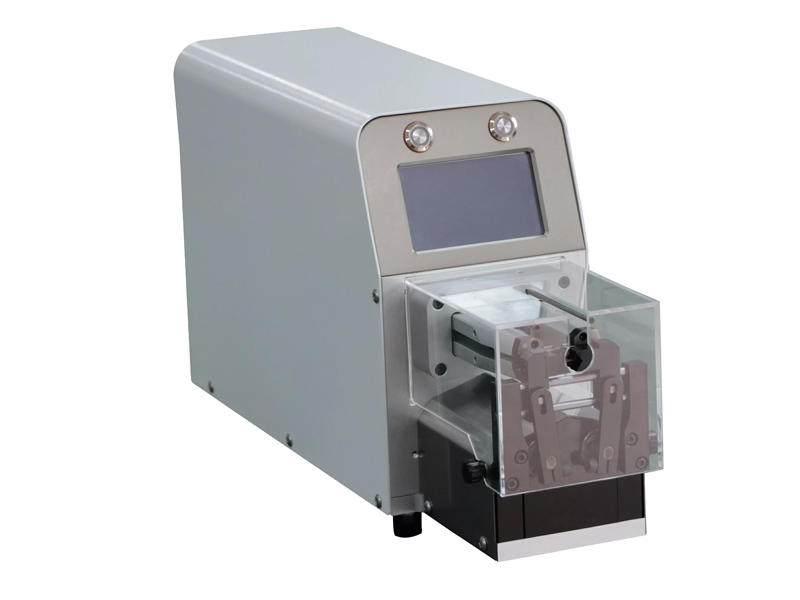

·Model: DM - B745

·Maximum stripping length: 0-45mm

·Peeling length setting unit: 0.01mm

·Cutting line diameter range: 0.5-7mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 4 layers

·Working power supply: AC220V/110V 50/60HZ

·Power: 300W

·Number of blades: 2 pieces

·Dimensions: 495 * 138 * 260mm

·Weight: 13.8kg

·Tool material: Imported tungsten steel

·Storage capacity: 99 types of processing parameter data

·Production efficiency: 1800-2400PCS/H (depending on wire stripping length)
