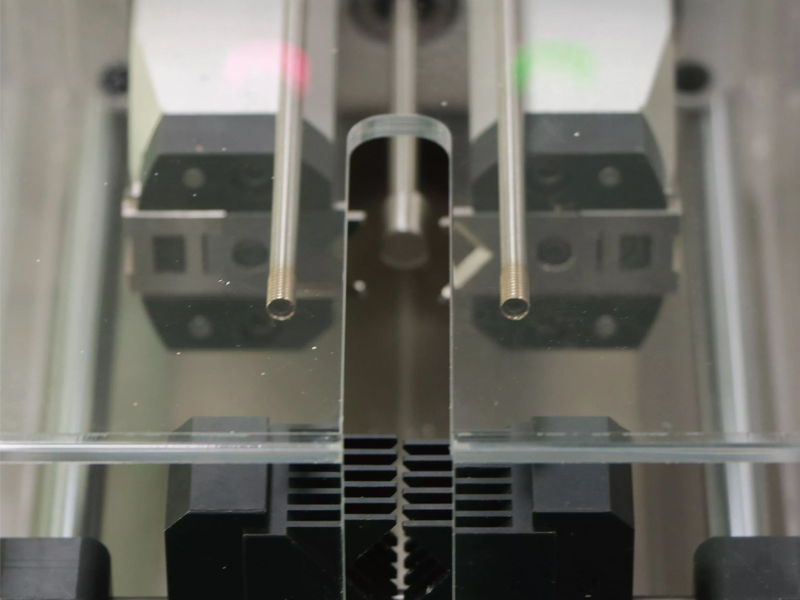

Characteristic description:

The stripping edge of the wire is neat, the length is precise, and it will not damage the conductor. Up to 4 layers can be peeled and up to 100 processing parameters can be saved. The cutting tools are made of imported tungsten steel or imported high-speed steel, which are sharp and durable, and easy and convenient to replace.

Technical Specifications:

·Model: DM-B1060

·Opening method: foot pedal/manual/top rod

·Maximum stripping length: 0-60mm

·Cutting line diameter range: 1-10mm

·Peeling length setting unit: 0.01mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 4 layers

·Drive mode: motor/ball screw drive

·Number of blades: 2 pieces

·Claw: 2 pieces

·Working power supply: AC220V50H2

·Power: 300W

·Dimensions: 550X170X330mm

·Weight: 23kg

·Wire clamping device: automatic centering, program control degree

·Storage capacity: Storage of 1-100 wire processing programs
