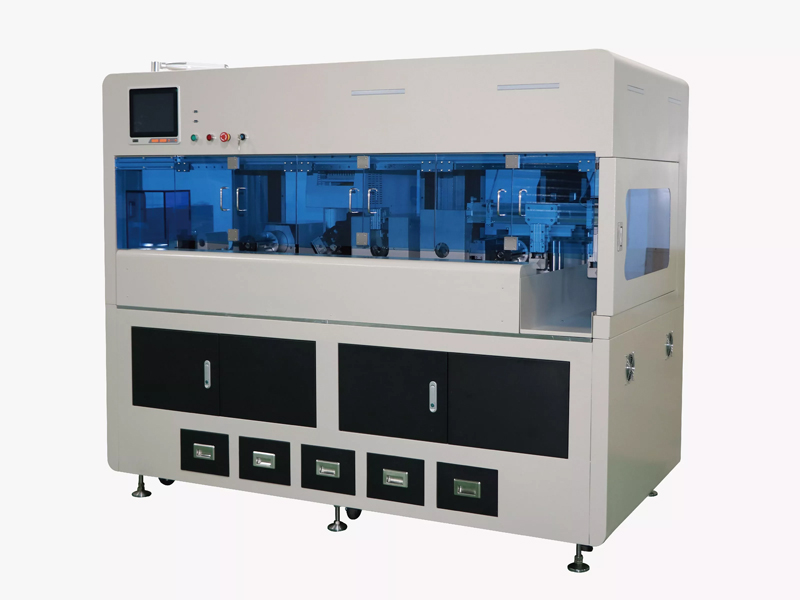

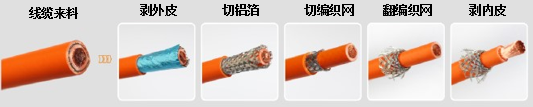

Process flowchart of high-voltage line five station peeling, cutting and flipping integrated machine

Technical Specifications:

·Model: DM-N7015

·Total length range: 500-6000mm

·Peeling station: processing range of 2.5-70mm ², processing length of 5-150mm

·Laser cutting aluminum foil workstation: processing range 2.5-70mm ²

·Shielding net cutting station: Processing range: 2.5-70mm ², cutting length: 5-80mm

·Shielding net flipping station: 5-25mm

·Peeling station: processing range of 2.5-70mm ², processing length: 5-100mm

·Theoretical production capacity: approximately 145-200pph

·Single workstation time: 18-25s

·The whole machine is approximately 2.26 (length) x 1.2m (widest point)

·The height is approximately 2.2m and the land area is approximately 3m2

·Working power supply: 220V/50HZ

·Total power: around 5KW

·Supply air pressure: above 0.5Mpa

·Weight of the whole machine: about 1.4t (the floor is required to withstand a pressure of not less than 0.5t/m2)
