Characteristic description:

·Cable stripping, cutting and weaving, flipping and weaving, and stripping the inner layer. Customers can turn off one of the functions according to their own product needs, and can freely combine them as follows:;

·Peeling the outer layer+cutting and weaving+flipping and weaving+peeling the inner layer;

·Cutting and weaving+flipping and weaving+peeling the inner layer (the outer layer of the incoming material has been peeled);

·Peel the outer layer+peel the inner layer (the weaving length is consistent with the peeled inner layer).

Technical Specifications:

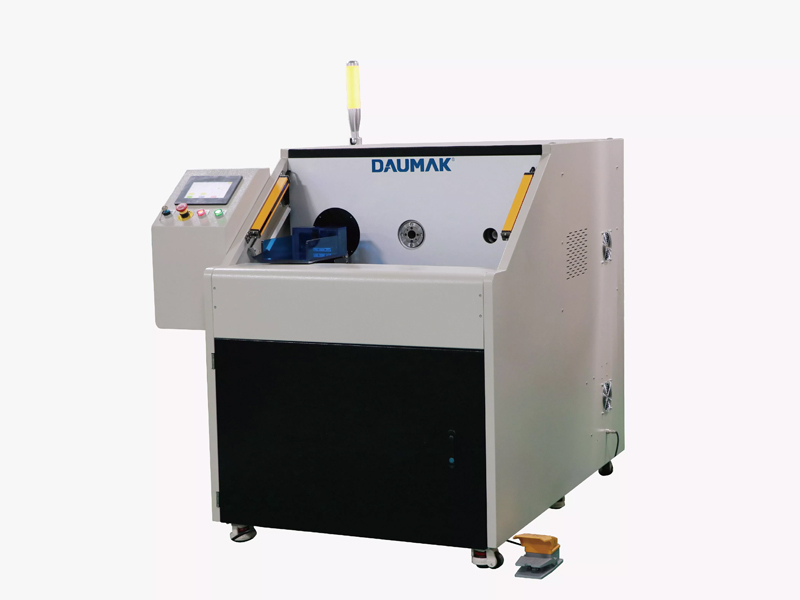

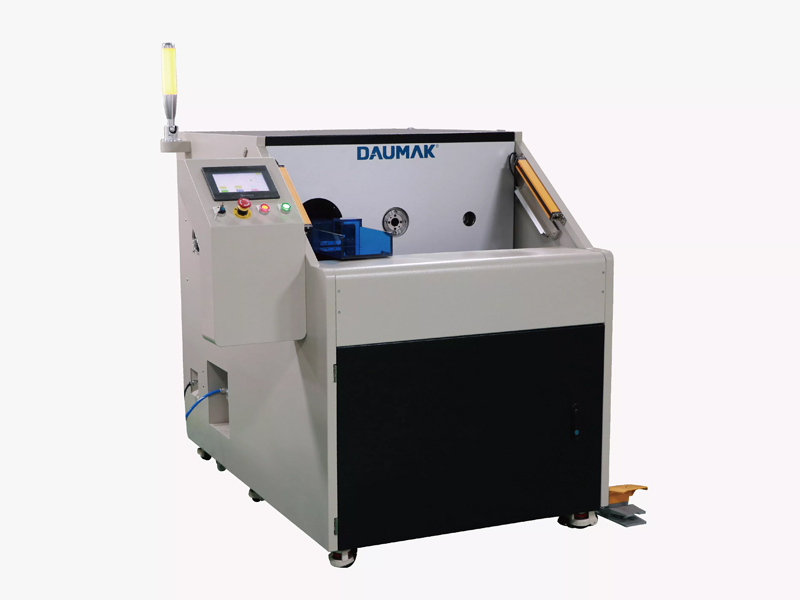

·Model: DM-A9523

·Function: Peel the outer layer+cut and weave+flip and weave+peel the inner layer

·Wire processing range: 2.5-95 square cable

·Internal and external peeling length: ≤ 100 (semi-automatic coaxial machine peeling single use ≤ 150)

·Shielding retention size: 2-30

·Power supply: AC220V 50/60Hz single-phase

·Power: 1.5KW

·Size: 1400X950X1200mm
