Characteristic description:

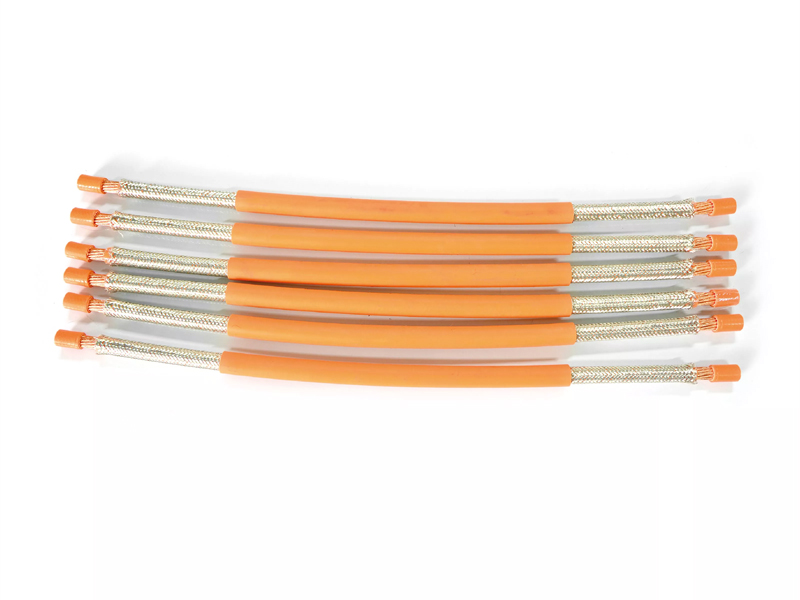

DM-9925-X is a fully servo high-precision rotary cutting and wire stripping machine. The rotary blade head adopts a unique three blade technology, greatly improving the stability and precision of rotary cutting. It is particularly suitable for multi-layer wire stripping operations of coaxial cables with an outer diameter of 5-25mm; The powerful servo power output and stable movable stripping and cutting structure enable it to adapt to the processing of various large outer diameter coaxial cables and new energy cables, resulting in smoother cable stripping and more perfect dimensional accuracy.

Technical Specifications:

·Model: DM-9925-X

·Display mode: 7-inch color touch screen (can be equipped with a computer operation version)

·Applicable wires: coaxial cables, new energy cables, BV wires, etc

·Cutting line diameter range: 5-25mm (2.5-120 square meters)

·Peeling length: Max 250mm on the right end, Max 300mm on the left end (different wires have certain differences)

·Length accuracy: ≤ 0.2% mm

·Cutting capacity: 150mm-99999mm

·Peeling length setting unit: 0.01mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 9 layers

·Drive configuration: Full servo motor (brand can be specified)

·Rotating blade: 3 imported tungsten steel blades

·Cutting and peeling blades: 4 pieces of imported high-speed steel

·Production: 250-550pcs/h (depending on the visual material)

·Power supply: AC 220V/50HZ

·Power: 4KW

·Weight: Approximately 450kg

·Dimensions: Maximum 1650 * 730 * 1450mm
