Characteristic description:

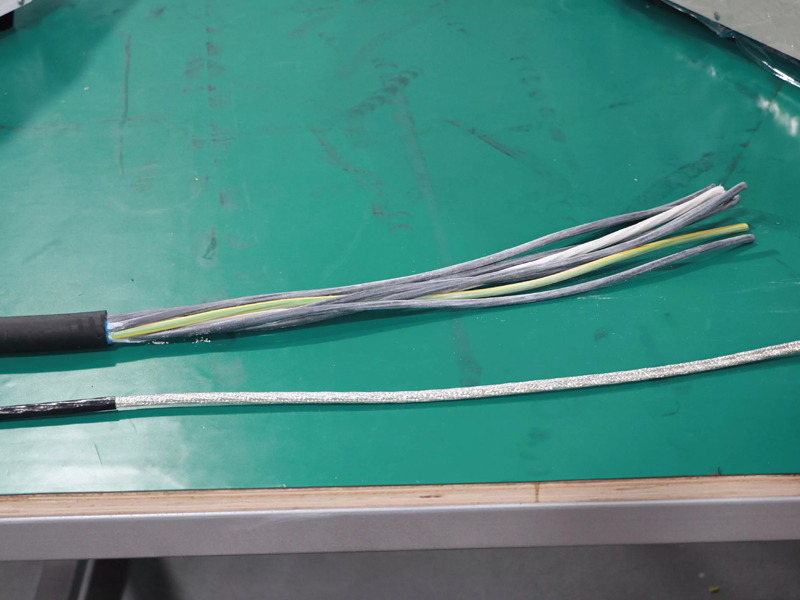

The main purpose is to strip multiple layers of cables for new energy, automobiles, motorcycles, and aviation, especially suitable for stripping the outer layer of DC wire harnesses such as charging guns, while also meeting the stripping requirements of the inner core wire; The equipment adopts a fully servo motor configuration, with all parameters intelligently adjustable. The 4-piece+4-piece wire protection plate rotary cutting mechanism ensures smooth cutting, and the 8-blade peeling method ensures stable peeling. You can also customize any extra long wire stripping requirements.

Technical Specifications:

·Model: DM -3050

·Stripping diameter: 3-30mm

·Peel length: 500mm (Peel length can be customized)

·Minimum peeling depth: 0.01mm

·Rotating cutting method: 4 rotating knives+4 wire protectors

·Peeling method: rotating knife+4 peeling knives

·Wire clamping device: servo electric gripper

·Working environment: 15-35 ℃ with appropriate dryness

·Storage capacity: 100 types of programs

·Display mode: seven inch touch screen

·Opening method: foot pedal/manual

·Power: 2KW

·Weight: Approximately 325kg

·Dimensions: Length 1300 x Width 620 x Height 1350mm

·Working power supply: AC220V 50/60HZ

·Drive mode: fully equipped servo drive

Can add physical interfaces for linking MES systems
