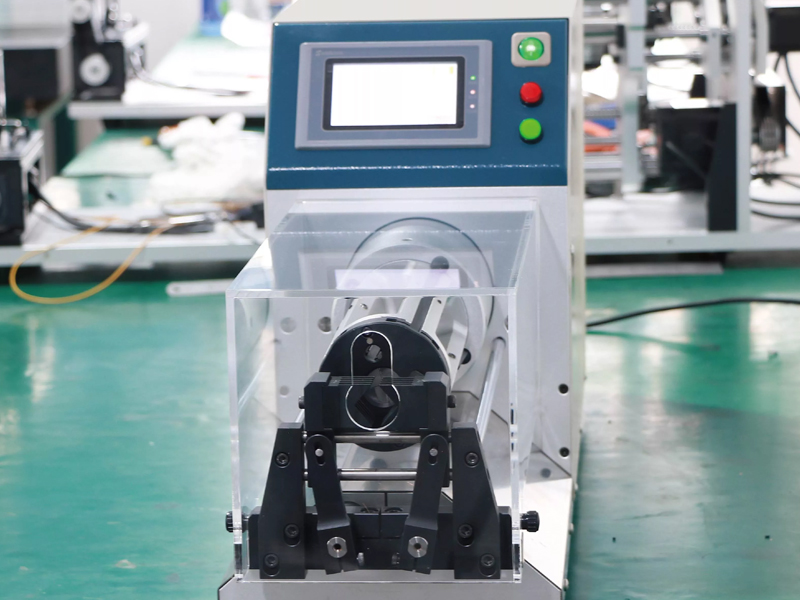

Characteristic description:

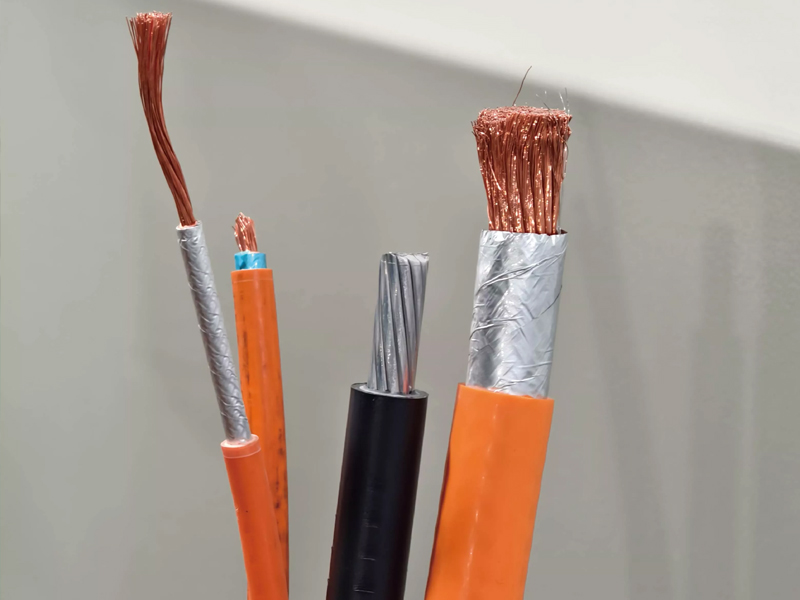

Suitable for peeling various flexible and semi flexible coaxial lines, charging station cables, medical wires, etc. in the communication industry and medical automotive industry, with neat peeling edges and precise no damage to conductors. Human machine interface, easy to operate, can peel up to 9 layers, and can store up to 99 types of processing data; The rotating blade head, four piece rotating blade design, and exquisite structure further improve the stability of wire stripping and the working life of the tool.

Technical Specifications:

·Model: DM-2320

·Maximum stripping length: 0-200mm

·Cutting line diameter range: 2-23mm

·Peeling length setting unit: 0.01mm

·Cutting depth setting unit: 0.01mm

·Maximum number of peeling layers: 9 layers

·Number of blades: 4 pieces

·Working power supply: AC220V/110V 50/60HZ

·Power: 600W

·Dimensions: 930 * 235 * 400mm

·Weight: 56kg

·Production efficiency: 300-800 Pcs/h (depending on the viewing material)
